Sensor Proximity No3 Wire Flush 4mm Metal M12 Connect
£57.14 Incl. VAT

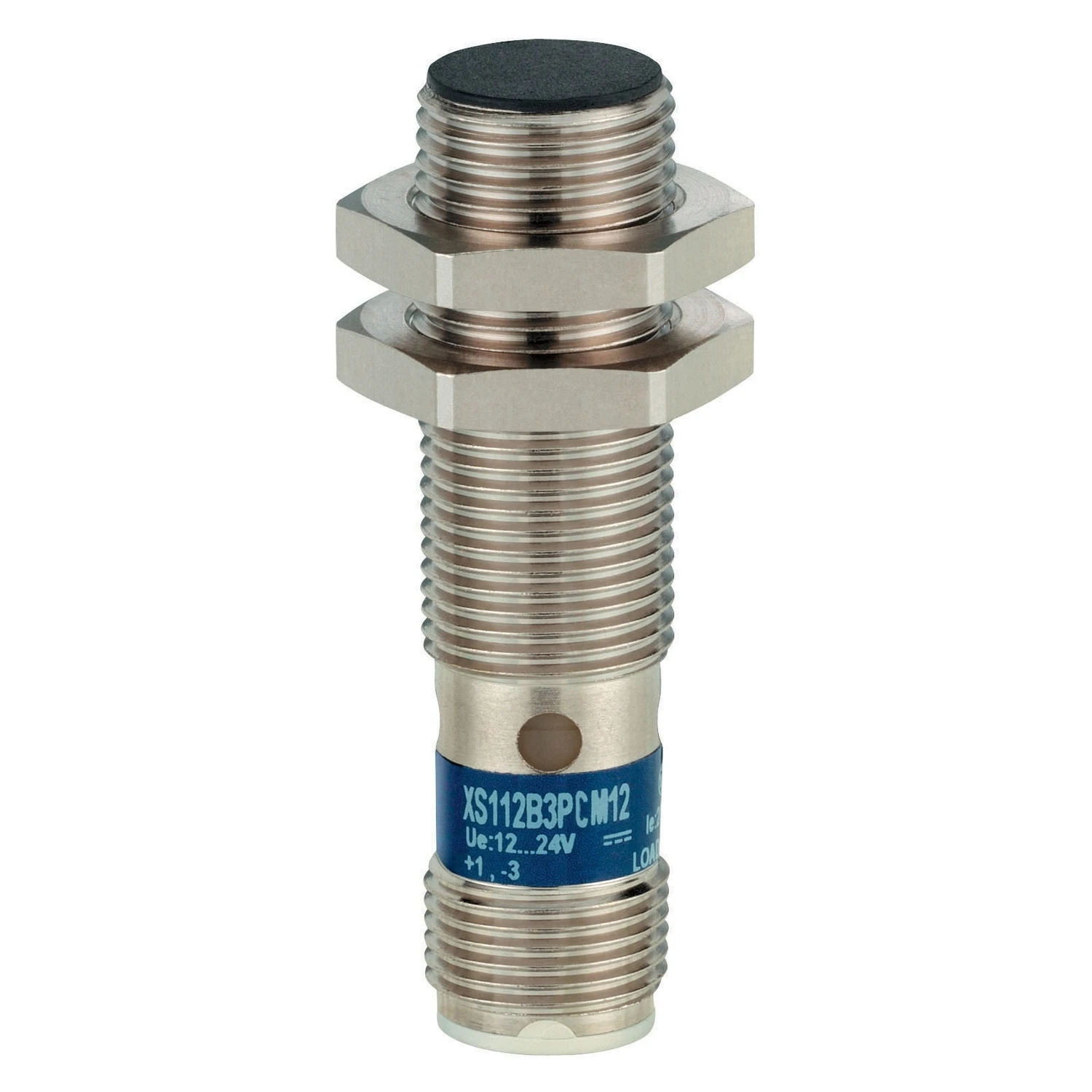

This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. Nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is E2, CSA, UL certified. · · · This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 24V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. · · Nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. · · IP65, IP68 and IP69K protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It has a standard M12 connector, compatible with all existing market sensor cabling.
Out of stock
Description
Technical Specifications Technical Specifications Inductive proximity switch Type of interface for safety communication None Interface type None Explosion safety category for dust None SIL according to IEC 61508 None Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 None Coating housing Nickel-plated Construction type housing Cylinder, screw-thread Mechanical mounting condition for sensor Concise Type of electric connection Connector M12 Housing material Metal Type of switch function Normally open contact Type of switching output PNP/PNP Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Number of protected semiconductor outputs 0 Number of semiconductor outputs with signalling function 1 Height of sensor – mm Width sensor – mm Switching frequency 2500 Hz Type of actuation Metallic Target Voltage type AC/DC Number of contact energized outputs with signalling function 0 Switching distance 4 mm Rated control supply voltage at AC 60 Hz – V Rated control supply voltage at AC 50 Hz – V Max. output current at protected output 200 mA Length of sensor 50 mm Diameter sensor 12 mm Number of protected contact energized outputs 0 Supply voltage 12 – 24 V Rated control supply voltage at DC 12 – 24 V Cascadable No With monitoring function downstream switching devices No Compression-resistant No Suitable for safety functions No · Technical Data Sheet – Click to Download
