Sensor Proximity Pnp NO 3 Wire Flush 2.5mm M12 Connector
Sensor Proximity Pnp NO 3 Wire Flush 2.5mm M12 Connector
Sensor Proximity Pnp NO 3 Wire Flush 2.5mm M12 Connector - Image 2
Sensor Proximity Pnp NO 3 Wire Flush 2.5mm M12 Connector - Image 3
Sensor Proximity Pnp NO 3 Wire Flush 2.5mm M12 Connector - Image 4

Sensor Proximity Pnp NO 3 Wire Flush 2.5mm M12 Connector

£72.11 Incl. VAT

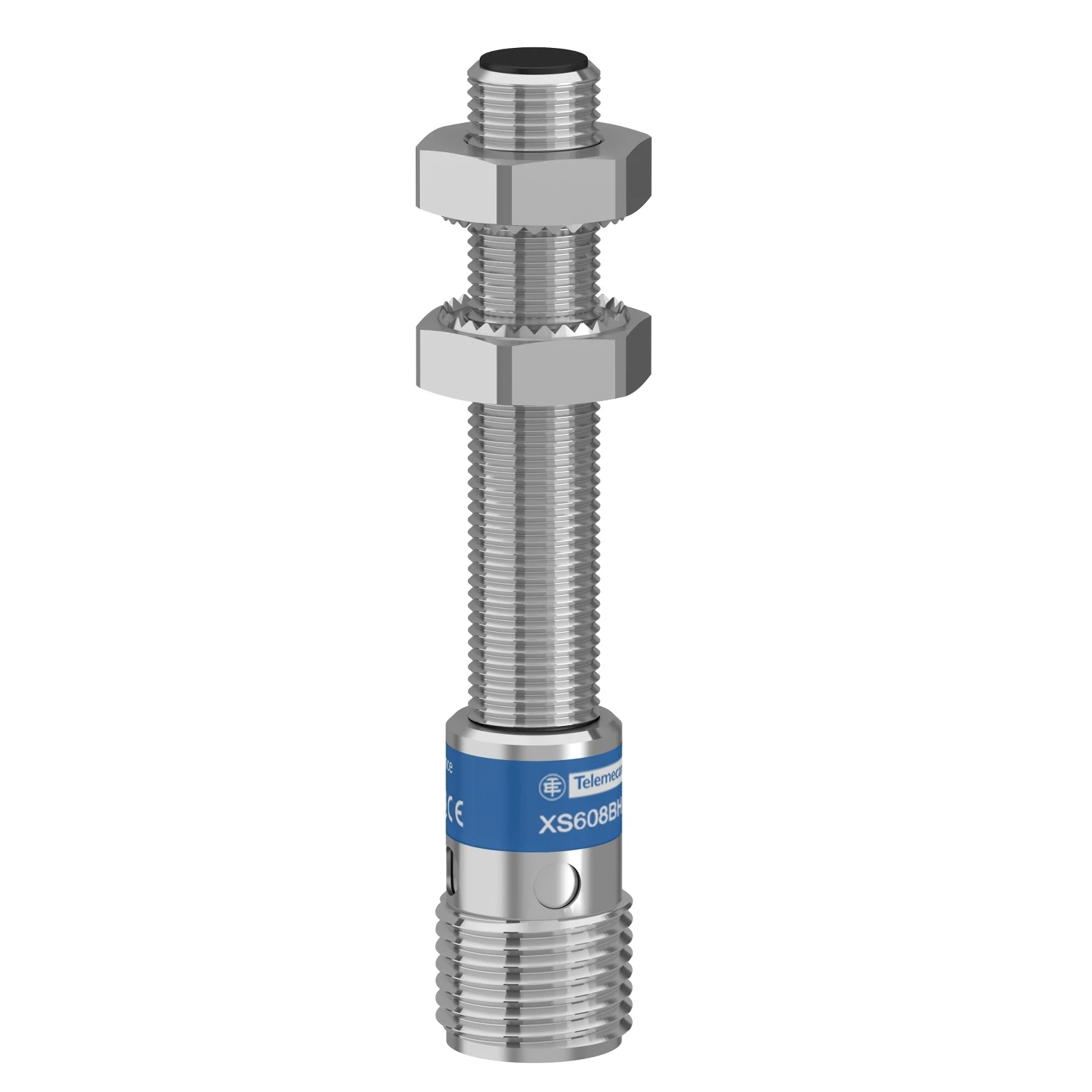

This XS cylindrical (M8 thread) inductive proximity sensor has a PPS sensing face and a stainless steel grade 303 case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Non-magnetic 303 stainless steel provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CSA, UL certified. · · · This XS cylindrical (M8 thread) inductive proximity sensor has a PPS sensing face and a stainless steel grade 303 case. · · It has a supply voltage of 12V to 48V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Non-magnetic 303 stainless steel provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. · · IP65 and IP67 protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It has a standard M12 connector, compatible with all existing market sensor cabling. · · It is CSA, UL certified.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS608B1PAM12 Categories: , , Brand: Part Number: 2500212840

Description

Technical Specifications  Technical Specifications Inductive proximity switch Interface type None Explosion safety category for dust None Type of interface for safety communication None Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 None SIL according to IEC 61508 None Construction type housing Cylinder, screw-thread Mechanical mounting condition for sensor Concise Type of electric connection Connector M12 Housing material Metal Number of semiconductor outputs with signalling function 1 Number of protected contact energized outputs 0 Max. output current at protected output 200 mA Type of actuation Metallic Target Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of switching output PNP/PNP Type of switch function Normally open contact Voltage type AC/DC Number of contact energized outputs with signalling function 0 Height of sensor – mm Width sensor – mm Switching frequency 2500 Hz Length of sensor 61 mm Diameter sensor 8 mm Switching distance 2.5 mm Number of protected semiconductor outputs 0 Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 48 V Rated control supply voltage at DC 12 – 48 V Compression-resistant No With monitoring function downstream switching devices No Cascadable No Suitable for safety functions No · Technical Data Sheet – Click to Download
