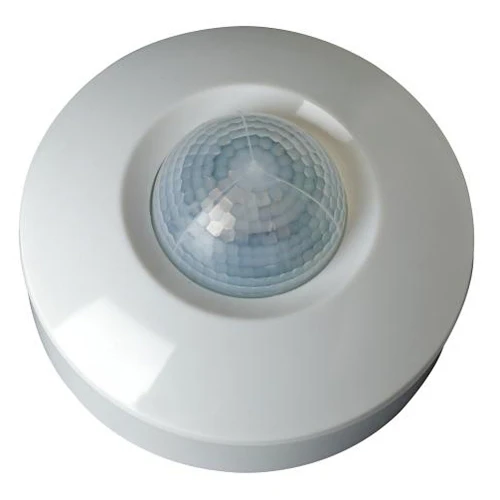

Robus Sensor Surface Or Recessed PIR Occupancy 106 x 57mm 360° White
£63.59 Incl. VAT
UNIVERSAL 360 PIR, recessed/surface, IP20, White · · · Suitable for both surface and recessed indoor applications · · Injection moulded ABS body – impact resistant · · Plug in terminal block and sensor module · · Large terminals accept 2 x 1.5mm conductors in each terminal; facility to loop in/loop out to parallel sensors or multiple fittings · · Adjustable time delay of 10sec to 40min ensures that lighting is switched off with required delay · · Adjustable lux setting of 10 to 2000lx · · Detection range 360, detection distance 10m at 2.8m mounting height · · Passive infra-red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggering · · Adjustable passive photocell; inhibits switching where natural light is sufficient
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Motion detector Material Plastic Colour White Height 57 mm Degree of protection (IP rating) IP20 Recess depth 17 mm Diameter 106 mm Recess diameter 84 mm Detection angle horizontal 360 – 360 ° Transparent No Halogen free No Auxiliary input No Suitable for wireless transmission No Alarm function No Response value sensitivity adjustable No Forced switch off No Networkable No Dim function with dimmer basic element No Response value luminosity adjustable No Bridging switch No Staircase monitoring No With remote control No Creep-under protection No Antibacterial treatment No Suitable for ceiling mounting No Animal zone No With signal unit No Teach-function for response value luminosity No Remote operation No Suitable for C-load No Constant light control No HVAC-control No Forced switch on No · Technical Data Sheet – Click to Download
