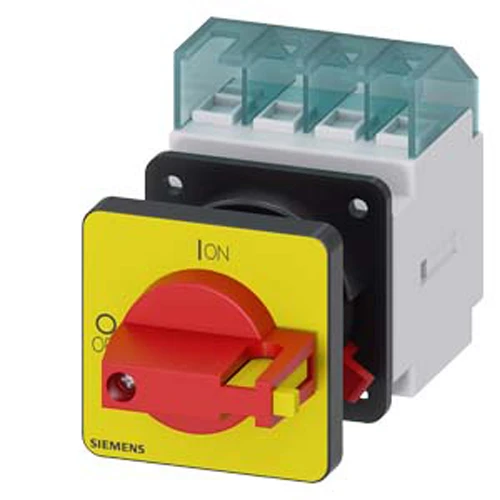

Siemens 3LD Switch Disconnector, Emergency Stop Switch, 3-Pole, Iu: 16 A, Operating Power …
£33.56 Incl. VAT
SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu: 16 A, operating power / at AC-23 A 400 V: 7.5 kW, front-mounted, knob-operated mechanism, Red / yellow, central mounting 22.5 mm of the handle The 3LD main and emergency switching-off switch as a maintenance switch for safe disconnection of loads in a wide variety of environments. There are numerous possible applications for the 3LD disconnector units. After disconnects from the grid, they ensure safe activation of all of the electrical equipment, thus switch, for example, to three-phase motors, but also air-conditioning and ventilation systems. 3LD have proven themselves in many fields, particularly in processing machines in mechanical and conveyor system engineering, and in the chemical sector and food and beverage industries. Key features of the Siemens 3LD main and emergency off switches: 1. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4-pole 2. Versatile and global applications possible thanks to international IEC, UL and marine approvals. 3. Degree of protection IP65 with encapsulated housing for outdoor applications. 4. Can be used for DC applications. 5. Types of mounting: Front mounting, mounting plate, standard mounting rail. 6. Optimized disconnect from 16 A to 250 A with lockable rotary operating mechanism.
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Colour control element Red Type of control element Toggle Device construction Suitable for fixed installation Type of electrical connection of main circuit Frame clamp Degree of protection (IP), front side IP65 Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 6 kW Conditioned rated short-circuit current Iq – kA Rated permanent current Iu 16 A Number of poles 3 Rated short-time withstand current lcw 0.34 kA Number of auxiliary contacts as change-over contact 0 Rated operation power at AC-23, 400 V 8 kW Number of switches 1 Rated permanent current at AC-21, 400 V 16 A Max. rated operation voltage Ue AC 690 V Switching power at 400 V – kW Rated permanent current at AC-23, 400 V 16 A Rated operating voltage – V Motor drive integrated No Version as main switch Yes Version as maintenance-/service switch Yes Version as safety switch Yes Version as emergency stop installation Yes Suitable for distribution board installation No Voltage release optional No Suitable for intermediate mounting No Version as reversing switch No Motor drive optional No Suitable for front mounting 4-hole No Interlockable Yes Suitable for front mounting centre Yes
