Siemens 55Kw/400V 1No+1Nc 24Vdc 3P Scr Term

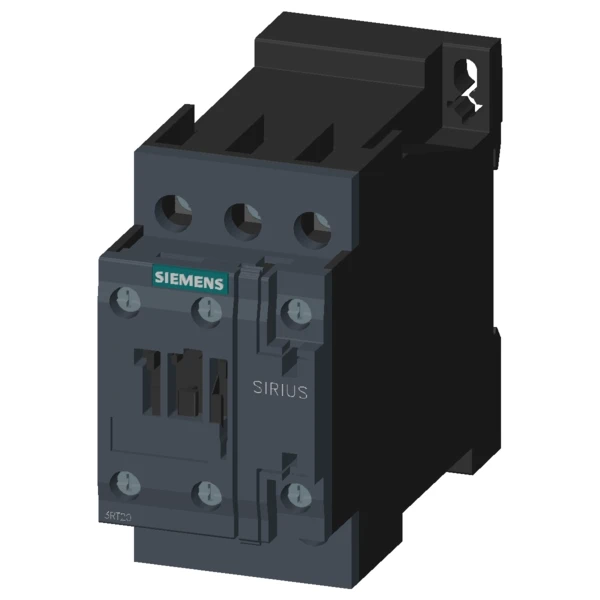

Siemens 55Kw/400V 1No+1Nc 24Vdc 3P Scr Term
Siemens 55Kw/400V 1No+1Nc 24Vdc 3P Scr Term - Image 2

Siemens 55Kw/400V 1No+1Nc 24Vdc 3P Scr Term

£98.95 Incl. VAT

Siemens 3RT2024-1BB40 3 Pole 3RT2 contactor with screw-type terminals. Screw and snap-on mounting onto 35mm standard mounting rail. +/-180° rotation possible on vertical mounting surface, can be tilted forward and backward by +/- 22.5° on vertical mounting surface. DC type of voltage of the control supply voltage is supported. 10A gL/gG fuse for short-circuit protection of the auxiliary switch is required. · · · Range: Sirius · · Size: S0 · · AC3 Rating: 12A · · Coil voltage: 24V DC · · Weight: 597g · · AC1 Rating: 40A · · Normal State Configuration: 3NO (Main) / 1NO + 1NC (Auxiliary) · · Dimensions: 45x107x85mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RT2024-1BB40 Categories: , , Brand: Product Code: 1050391947

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Voltage type for actuating DC Number of main contacts as normally open contact 3 Type of electrical connection of main circuit Screw connection Number of auxiliary contacts as normally open contact 1 Rated operation power at AC-3, 400 V 5.5 kW Number of auxiliary contacts as normally closed contact 1 Rated operation current Ie at AC-4, 400 V 12.5 A Rated operation current Ie at AC-3, 400 V 12 A Rated operation current Ie at AC-1, 400 V 40 A Rated control supply voltage at DC 24 – 24 V Rated operation power NEMA 5.51624 kW Modular version Yes
