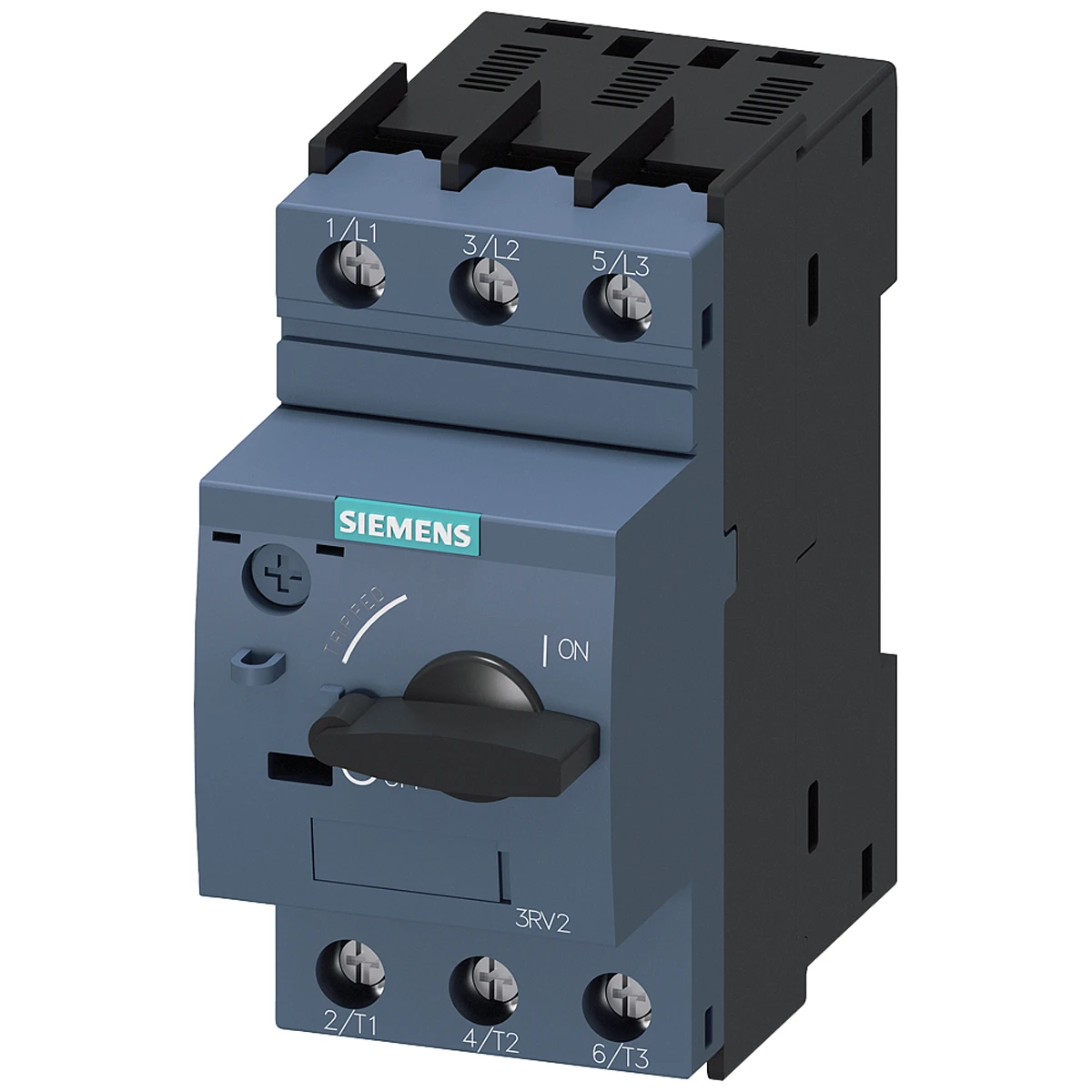

Siemens Cb Sz S0 Class 10 W/O Auxilary Switch 25A 11Kw Screw Conn
Siemens Cb Sz S0 Class 10 W/O Auxilary Switch 25A 11Kw Screw Conn
Siemens Cb Sz S0 Class 10 W/O Auxilary Switch 25A 11Kw Screw Conn - Image 2

Siemens Cb Sz S0 Class 10 W/O Auxilary Switch 25A 11Kw Screw Conn

£116.80 Incl. VAT

Siemens size S0 circuit breaker for motor protection with auxiliary switch. This circuit breaker has a CLASS 10 trip class and a thermal overload release design. Breaker also has a phase failure detection function. · · · Adjustable pick-up value current of overload release: 18 – 25A · · Response value current: 325A · · Screw clamp terminals: 2x (0.75 – 2.5mm²), 2 x 4mm² · · Any mounting position · · Mounting type: Screw/Snap-on mounting onto 35mm standard rail · · Operating voltage: 690V AC · · Tightening torque: 0.8 – 1.2Nm · · Mechanical/Electrical durability: 100000 cycles · · Ambient operating temperature: -20°C to 60°C · · IP20 Degree of protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RV2021-4DA10 Category: Brand: Product Code: 2500622067

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Switch off technique Magnetic Type of control element Rotating button Degree of protection (IP rating) IP20 Device construction Suitable for fixed installation Width 45 mm Type of electrical connection of main circuit Screw connection Height 97 mm Rated short-circuit breaking capacity Icu at 400 V, AC 55 kA Rated operation power at AC-3, 230 V 5.5 kW Rated permanent current Iu 25 A Rated operation power at AC-3, 400 V 11 kW Number of poles 3 Depth 97 mm Overload release current setting 18 – 25 A Adjustment range undelayed short-circuit release 325 – 325 A Rated operating voltage 690 – 690 V Phase failure sensitive Yes With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No · Technical Data Sheet – Click to Download
