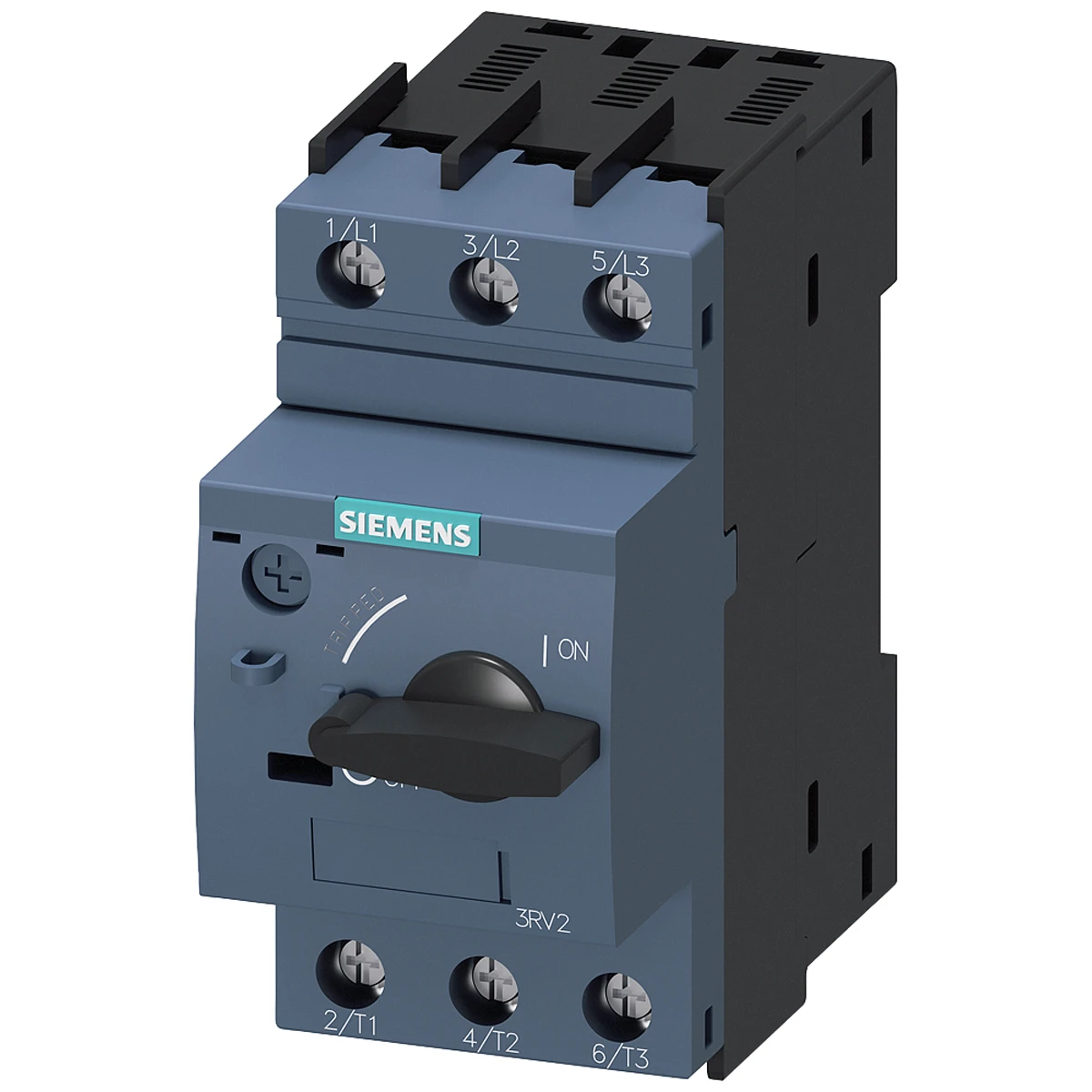

Siemens Cb Sz S00 Class 10 NO Auxiliary Switch 10A 4Kw Screw Conn
Siemens Cb Sz S00 Class 10 NO Auxiliary Switch 10A 4Kw Screw Conn
Siemens Cb Sz S00 Class 10 NO Auxiliary Switch 10A 4Kw Screw Conn - Image 2

Siemens Cb Sz S00 Class 10 NO Auxiliary Switch 10A 4Kw Screw Conn

£89.22 Incl. VAT

Siemens size S00 circuit breaker for motor protection with auxiliary switch. This circuit breaker has a CLASS 10 trip class and a thermal overload release design. Breaker also has a phase failure detection function. · · · Adjustable pick-up value current of overload release: 7 – 10A · · Response value current: 130A · · Screw clamp terminals: 2x (0.75 – 2.5mm²), 2 x 4mm² · · Any mounting position · · Mounting type: Screw/Snap-on mounting onto 35mm standard rail · · Operating voltage: 690V AC · · Tightening torque: 0.8 – 1.2Nm · · Mechanical/Electrical durability: 100000 cycles · · Ambient operating temperature: -20°C to 60°C · · IP20 Degree of protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RV2011-1JA10 Category: Brand: Product Code: 2500621737

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Switch off technique Magnetic Type of control element Rotating button Degree of protection (IP rating) IP20 Device construction Suitable for fixed installation Type of electrical connection of main circuit Screw connection Height 97 mm Rated operation power at AC-3, 400 V 4 kW Width 45 mm Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Rated permanent current Iu 10 A Rated operation power at AC-3, 230 V 2.2 kW Number of poles 3 Adjustment range undelayed short-circuit release 130 – 130 A Depth 97 mm Rated operating voltage 690 – 690 V Overload release current setting 7 – 10 A With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No Phase failure sensitive Yes · Technical Data Sheet – Click to Download
