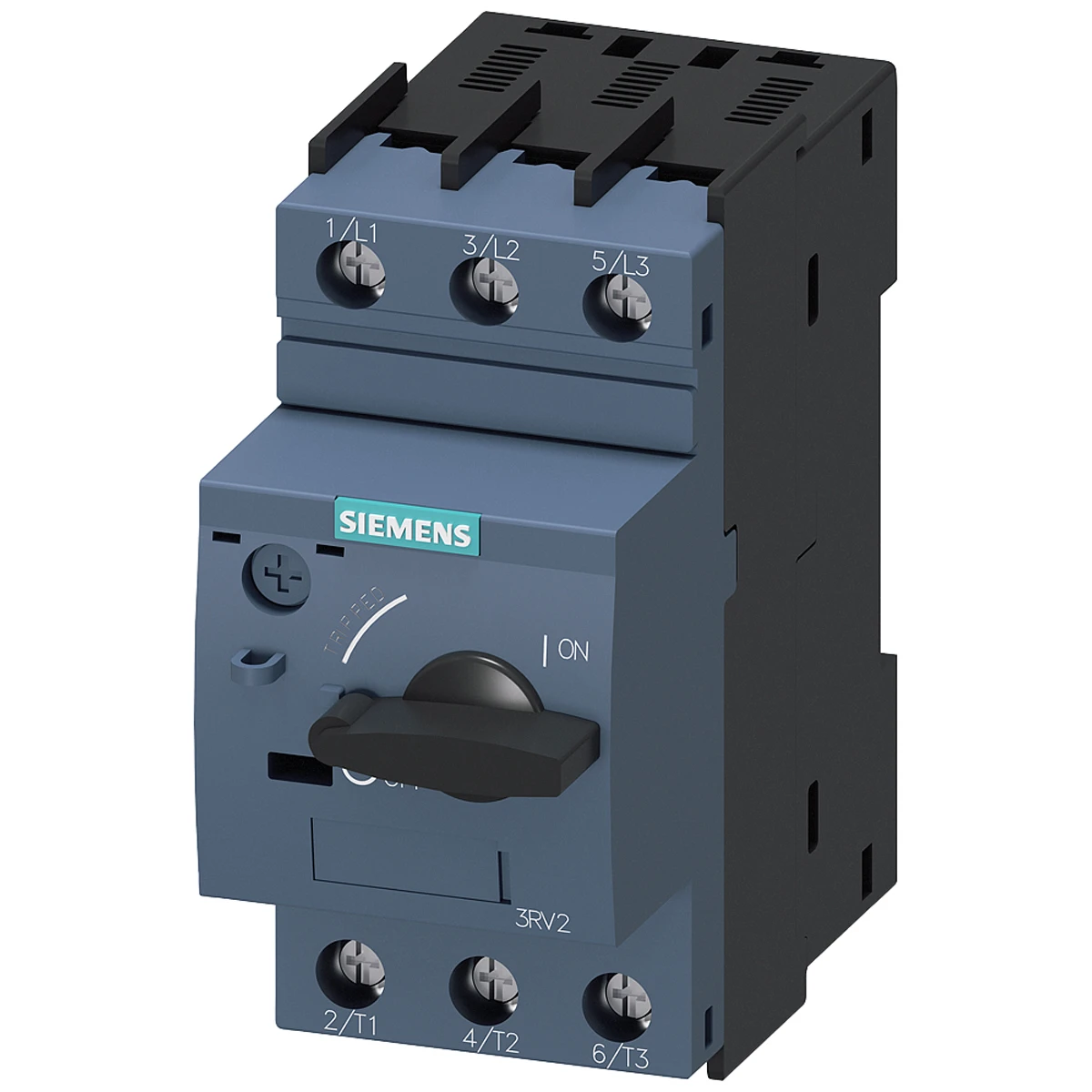

Siemens Cb Sz S00 Class 10 W/O Auxiliary Switch 4A 1.5Kw Screw Conn
Siemens Cb Sz S00 Class 10 W/O Auxiliary Switch 4A 1.5Kw Screw Conn
Siemens Cb Sz S00 Class 10 W/O Auxiliary Switch 4A 1.5Kw Screw Conn - Image 2

Siemens Cb Sz S00 Class 10 W/O Auxiliary Switch 4A 1.5Kw Screw Conn

£79.16 Incl. VAT

Siemens size S00 circuit breaker for motor protection with auxiliary switch. This circuit breaker has a CLASS 10 trip class and a thermal overload release design. Breaker also has a phase failure detection function. · · · Adjustable pick-up value current of overload release: 2.8 – 4A · · Response value current: 52A · · Screw clamp terminals: 2x (0.75 – 2.5mm²), 2 x 4mm² · · Any mounting position · · Mounting type: Screw/Snap-on mounting onto 35mm standard rail · · Operating voltage: 690V AC · · Tightening torque: 0.8 – 1.2Nm · · Mechanical/Electrical durability: 100000 cycles · · Ambient operating temperature: -20°C to 60°C · · IP20 Degree of protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RV2011-1EA10 Category: Brand: Product Code: 2500621735

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Switch off technique Magnetic Type of control element Rotating button Device construction Suitable for fixed installation Degree of protection (IP rating) IP20 Type of electrical connection of main circuit Screw connection Width 45 mm Height 97 mm Depth 97 mm Rated permanent current Iu 4 A Rated operation power at AC-3, 400 V 1.5 kW Rated operation power at AC-3, 230 V 0.75 kW Number of poles 3 Overload release current setting 2.8 – 4 A Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Adjustment range undelayed short-circuit release 52 – 52 A Rated operating voltage 690 – 690 V Phase failure sensitive Yes With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No · Technical Data Sheet – Click to Download
