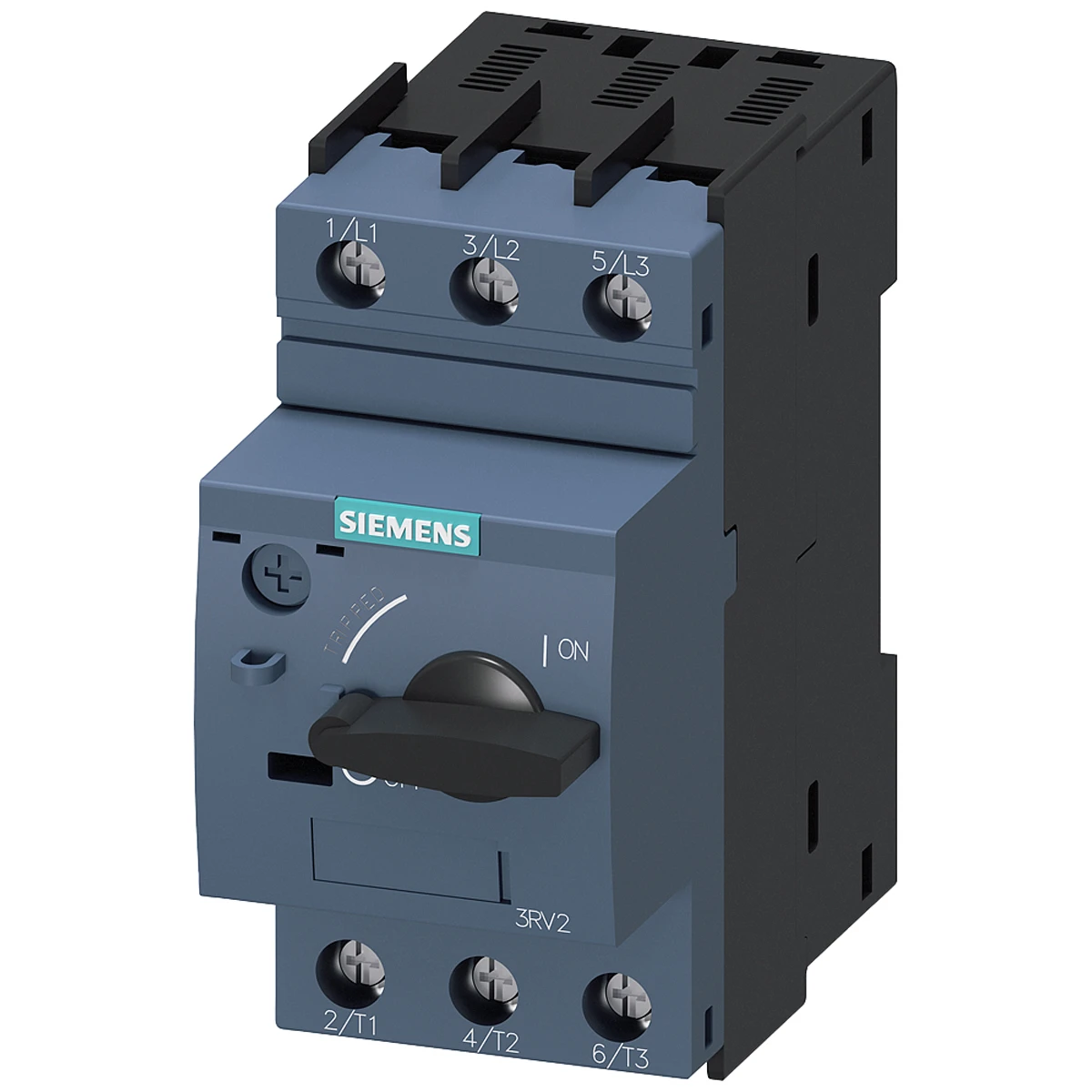

Siemens Cb Sz S00 Class 10 W/O Auxiliary Switch 6.3A 2.2Kw Screw Conn
Siemens Cb Sz S00 Class 10 W/O Auxiliary Switch 6.3A 2.2Kw Screw Conn
Siemens Cb Sz S00 Class 10 W/O Auxiliary Switch 6.3A 2.2Kw Screw Conn - Image 2

Siemens Cb Sz S00 Class 10 W/O Auxiliary Switch 6.3A 2.2Kw Screw Conn

£79.16 Incl. VAT

Siemens size S00 circuit breaker for motor protection with auxiliary switch. This circuit breaker has a CLASS 10 trip class and a thermal overload release design. Breaker also has a phase failure detection function. · · · Adjustable pick-up value current of overload release: 4.5 – 6.3A · · Response value current: 82A · · Screw clamp terminals: 2x (0.75 – 2.5mm²), 2 x 4mm² · · Any mounting position · · Mounting type: Screw/Snap-on mounting onto 35mm standard rail · · Operating voltage: 690V AC · · Tightening torque: 0.8 – 1.2Nm · · Mechanical/Electrical durability: 100000 cycles · · Ambient operating temperature: -20°C to 60°C · · IP20 Degree of protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RV2011-1GA10 Category: Brand: Product Code: 2500621736

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Switch off technique Magnetic Type of control element Rotating button Degree of protection (IP rating) IP20 Device construction Suitable for fixed installation Type of electrical connection of main circuit Screw connection Height 97 mm Width 45 mm Rated permanent current Iu 6.3 A Rated operation power at AC-3, 400 V 2.2 kW Rated operation power at AC-3, 230 V 1.5 kW Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Depth 97 mm Number of poles 3 Overload release current setting 4.5 – 6.3 A Adjustment range undelayed short-circuit release 82 – 82 A Rated operating voltage 690 – 690 V Phase failure sensitive Yes With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No · Technical Data Sheet – Click to Download
