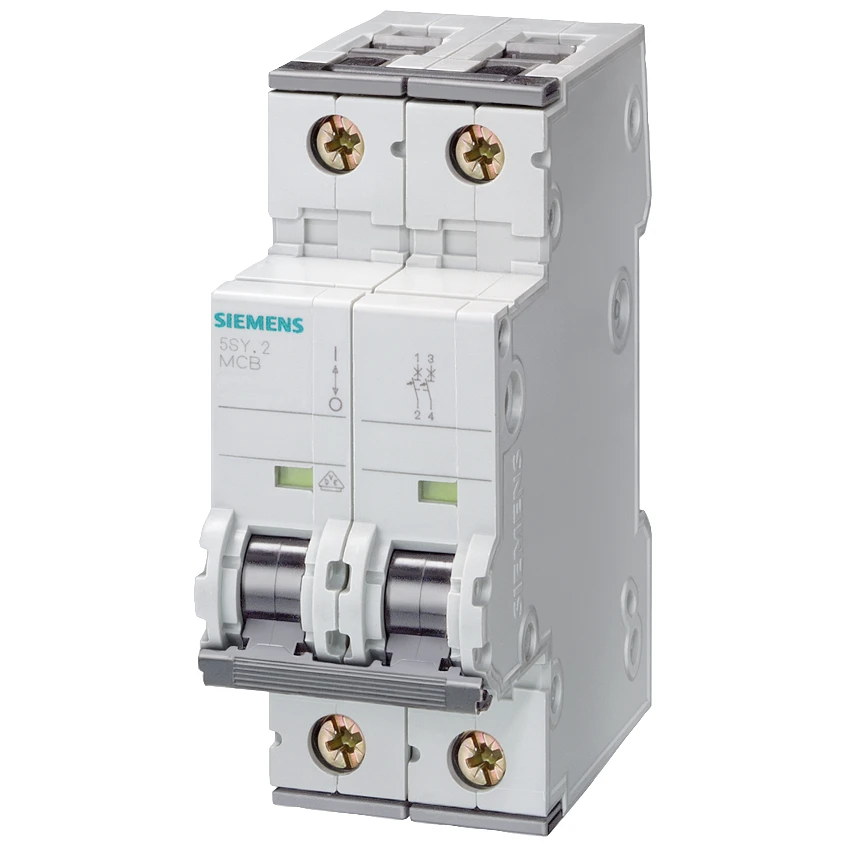

Siemens Circuit Breaker Universal Current 440 V DC 400 V AC 10kA, 2-Pole, B, 06A

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Degree of protection (IP rating) IP20 Rated current 6 A Voltage type AC/DC Rated voltage 400 V Recess depth 70 mm Width in number of modular spacings 2 Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles – Rated insulation voltage Ui 440 V Number of poles (total) 2 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Pollution degree 3 Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -40 – 70 °C Concurrently switching N-neutral No Additional equipment possible Yes
