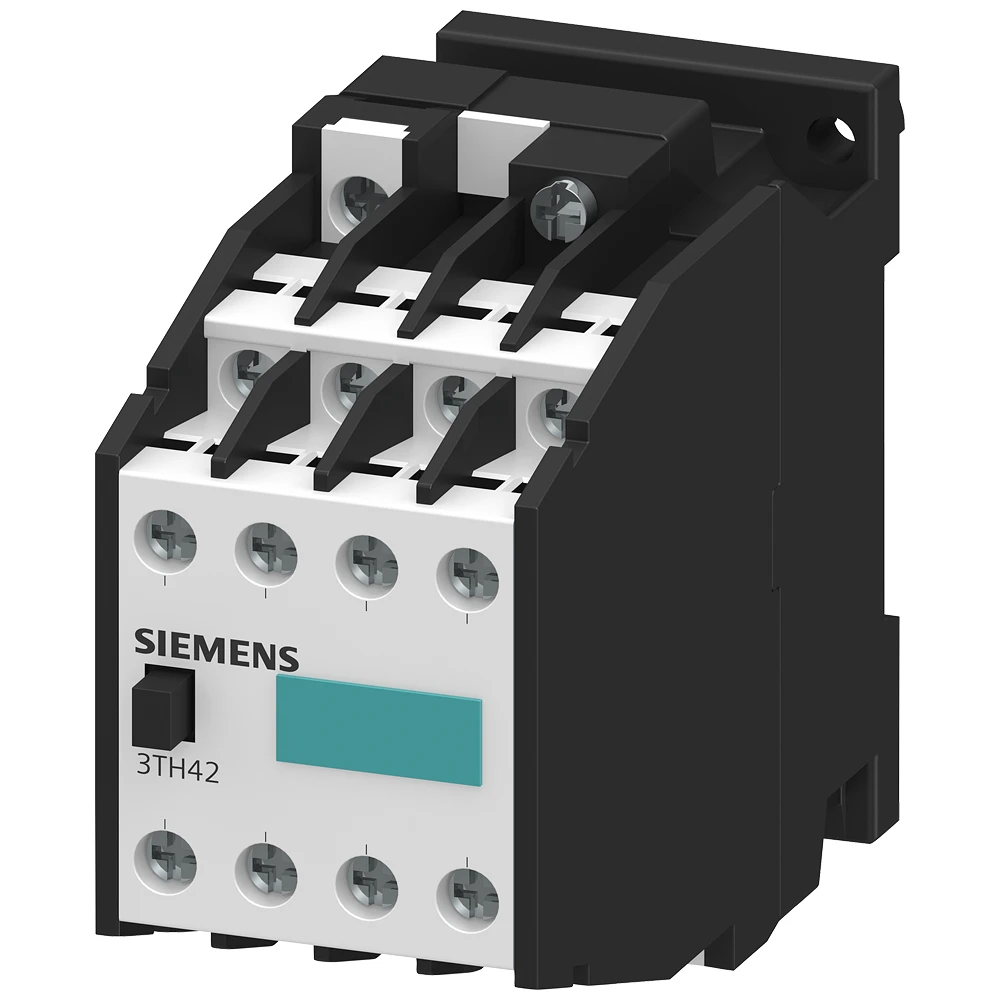

Siemens Contactor Relay 53E, 5 NO + 3 NC, AC Op. 110 V AC
Siemens Contactor Relay 53E, 5 NO + 3 NC, AC Op. 110 V AC
Siemens Contactor Relay 53E, 5 NO + 3 NC, AC Op. 110 V AC - Image 2

Siemens Contactor Relay 53E, 5 NO + 3 NC, AC Op. 110 V AC

£102.18 Incl. VAT

Contactor relay, 53E, DIN EN 50011, 5NO + 3NC, screw terminal AC operation 110V AC 50/60Hz Auxiliary contactor 3TH4 for switching the control signals in the control circuit. The SIRIUS 3TH4 contactor relays have standard-compliant terminal designations and a reliable connection technology. Thanks to the multiplication of outputs, simultaneous switching of up to 10 auxiliary circuits is possible. The contacts are designed with positively driven operation for safety applications as well as SUVA versions. The devices are climate-resistant, have a high contact reliability and are suitable for use worldwide thanks to the corresponding approvals (e.g. IEC and UL/CSA). The 3TH4 contactor relays are available with AC or DC operation in various versions with 8 or 10 poles. Available accessories include surge suppressors, time-delay blocks and coupling links. · · · Contactor relay 53E, 5 NO + 3 NC, AC op. 110 V AC

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3TH4253-0AG2 Categories: , , Brand: Product Code: 1050446465

Description

Technical Specifications  Technical Specifications Contactor relay Connection type auxiliary circuit Screw connection Voltage type for actuating AC Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally open contact 5 Rated operation current Ie, 400 V 6 A Number of auxiliary contacts as normally closed contact, delayed switching 0 Number of auxiliary contacts as normally closed contact 3 Number of auxiliary contacts as normally open contact, leading 0 Rated control supply voltage at AC 50 Hz 110 – 110 V Rated control supply voltage at AC 60 Hz 110 – 110 V With LED indication No Rated control supply voltage at DC – V Interface No · Technical Data Sheet – Click to Download
