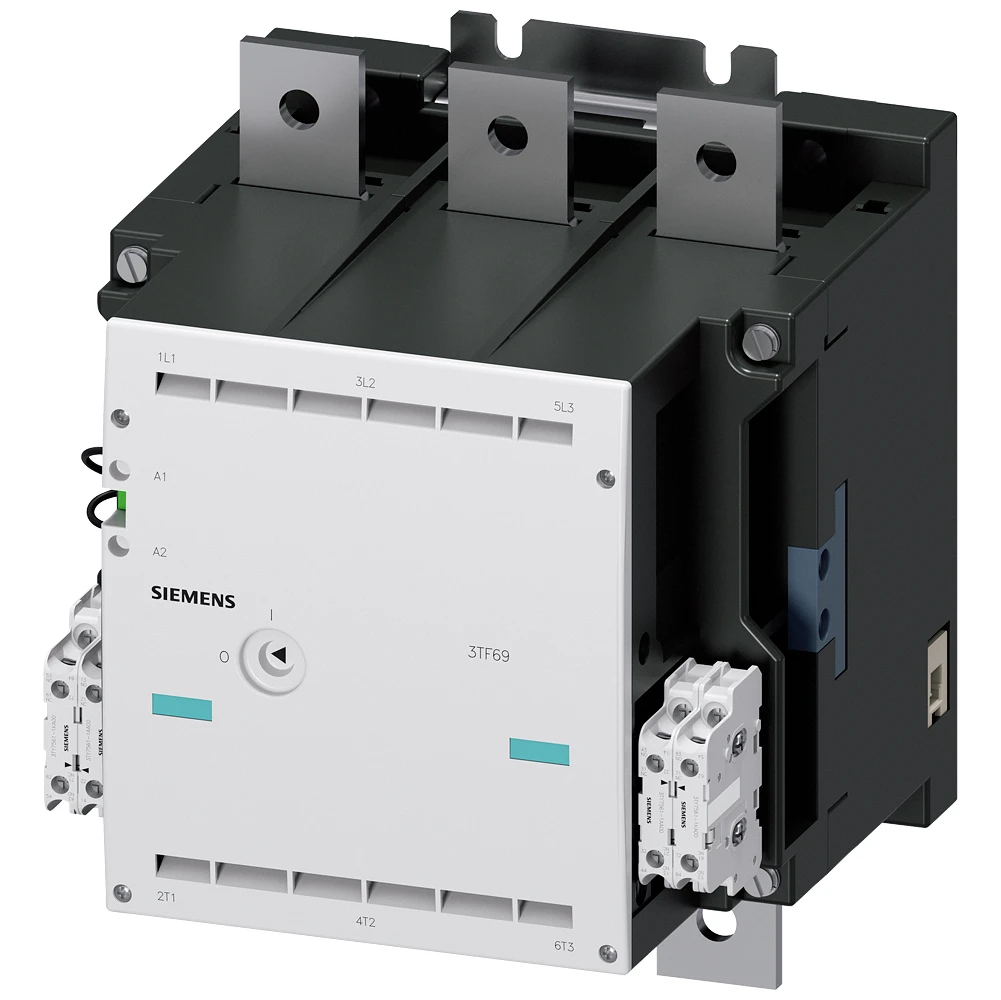

Siemens Contactor Size 14, 3-Pole, AC-3, 450 KW, 400/380 V (690 V) (4 NO + 4 NC)
£8,428.06 Incl. VAT
Contactor, Size 14, 3-pole, AC-3, 450 kW, 400/380 V (690 V) Auxiliary switch 44 (4NO+4NC) AC operation 200…240 V AC 50/60 Hz Vacuum contactor 3TF6 for switching motors. The 3TF6 vacuum contactors offer convincing high performance from a compact design with high contact reliability. They are also characterized by their particularly long switching endurance. They are therefore particularly well suited to frequent switching in inching operation. Pre-installed auxiliary switches reduce the complexity of your design. The devices are approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in two sizes, with AC and DC operation, and in a wide performance range. The devices can be connected in the main circuit by means of rails. A wide range of accessories is available for these contactors, such as surge suppressors, auxiliary switches or terminal covers. · · · Contactor size 14, 3-pole, AC-3, 450 kW, 400/380 V (690 V) (4 NO + 4 NC)
Description
Technical Specifications Technical Specifications Power contactor, AC switching Type of electrical connection of main circuit Rail connection Voltage type for actuating AC Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 450 kW Number of auxiliary contacts as normally open contact 4 Number of normally closed contacts as main contact 0 Rated operation power NEMA 514.84913 kW Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-4, 400 V 690 A Rated operation current Ie at AC-1, 400 V 910 A Rated operation current Ie at AC-3, 400 V 820 A Number of auxiliary contacts as normally closed contact 4 Rated control supply voltage at DC – V Rated control supply voltage at AC 50 Hz 200 – 240.0 V Rated control supply voltage at AC 60 Hz 200 – 240.0 V Modular version Yes · Technical Data Sheet – Click to Download
