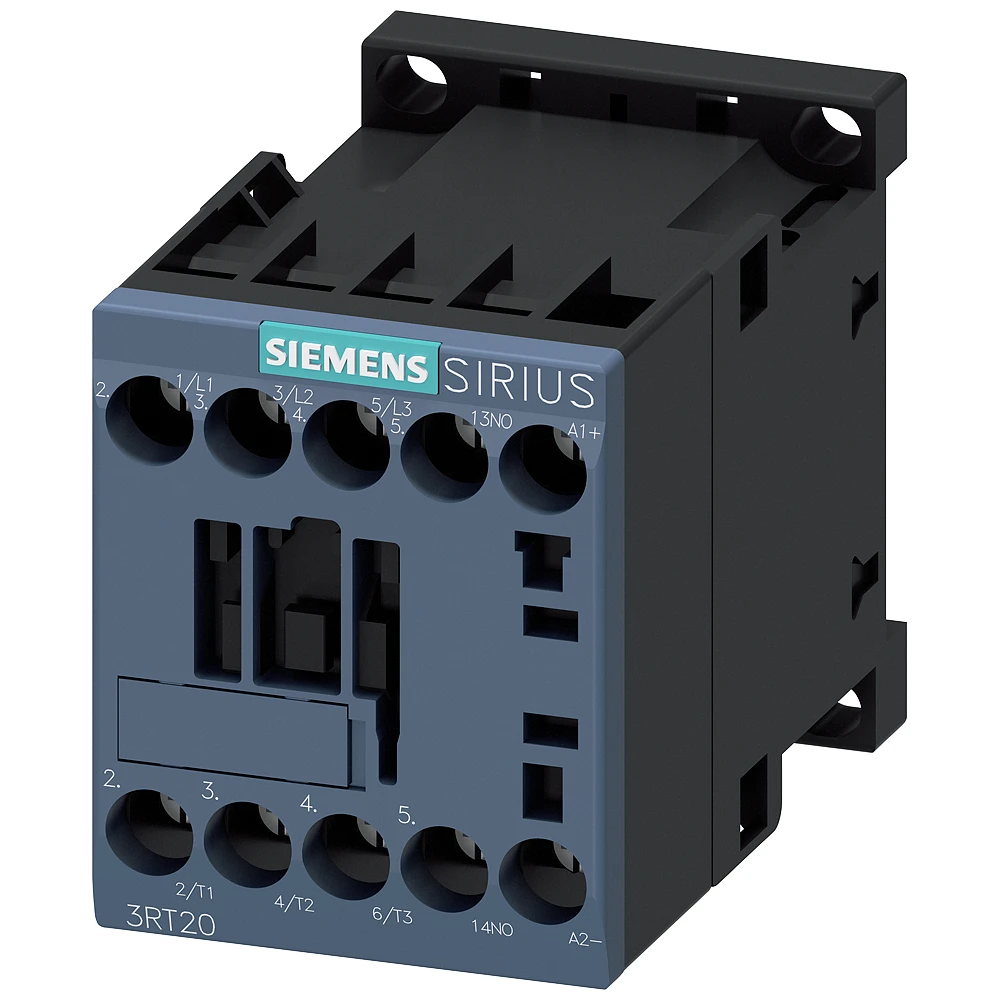

Siemens Coupling Contactor, AC-3, 7 A/3 KW/400 V, 3-Pole, 24 V DC, 1 NO, Screw Terminal
Siemens Coupling Contactor, AC-3, 7 A/3 KW/400 V, 3-Pole, 24 V DC, 1 NO, Screw Terminal
Siemens Coupling Contactor, AC-3, 7 A/3 KW/400 V, 3-Pole, 24 V DC, 1 NO, Screw Terminal - Image 2

Siemens Coupling Contactor, AC-3, 7 A/3 KW/400 V, 3-Pole, 24 V DC, 1 NO, Screw Terminal

£42.98 Incl. VAT

power contactor, AC-3 7 A, 3 kW / 400 V 1 NO, 24 V DC 0.7-1.25* US, 3-pole size S00, screw terminal suitable for PLC outputs not expandable with auxiliary switch Coupling contactor SIRIUS 3RT2 for switching motors and auxiliary and control circuits, specially designed for direct connection to electronic controllers. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. Simple, efficient and always up to date – SIRIUS modular system. · · · Coupling contactor, AC-3, 7 A/3 kW/400 V, 3-pole, 24 V DC, 1 NO, screw terminal

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RT2015-1HB41 Brand: Product Code: 1050441159

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Voltage type for actuating DC Type of electrical connection of main circuit Screw connection Rated operation power at AC-3, 400 V 3 kW Number of main contacts as normally open contact 3 Number of normally closed contacts as main contact – Number of auxiliary contacts as normally closed contact – Number of auxiliary contacts as normally open contact 1 Rated operation power NEMA 2.2065 kW Rated operation current Ie at AC-4, 400 V 6.5 A Rated operation power at AC-4, 400 V 3 kW Rated operation current Ie at AC-3, 400 V 7 A Rated operation current Ie at AC-1, 400 V 18 A Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Rated control supply voltage at DC 24 – 24 V Modular version Yes
