Siemens Dp MCB 10Ka Dc 440V
£124.58 Incl. VAT

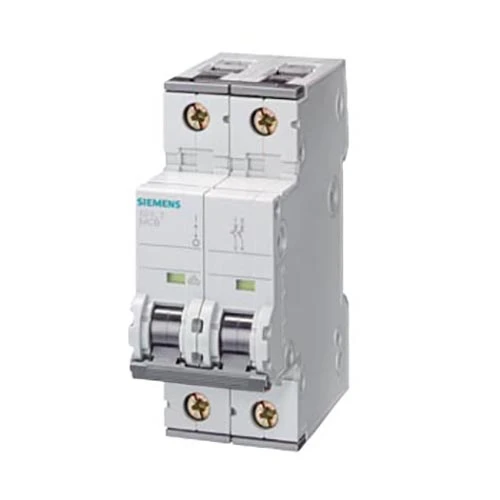

Siemens 5SY5206-7 2 Pole 6A Type C MCB with 5SY5 design and quick assembly mounting system. This MCB has breaking capacity of 10kA. It meets EN 60898 and IEC 60947-2 standards. The properties for main switches in accordance with EN 60204-1. · · · Breaking Capacity: 10kA · · Current Rating: 6A · · Weight: 300g · · Range: Sentron · · Height: 90mm · · Width: 36mm · · Depth: 76mm
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Degree of protection (IP rating) IP20 Voltage type AC/DC Rated current 6 A Recess depth 70 mm Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class 3 Pollution degree 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 2 Rated insulation voltage Ui 440 V Rated voltage 400 V Width in number of modular spacings 2 Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -40 – 70 °C Additional equipment possible Yes Concurrently switching N-neutral No
