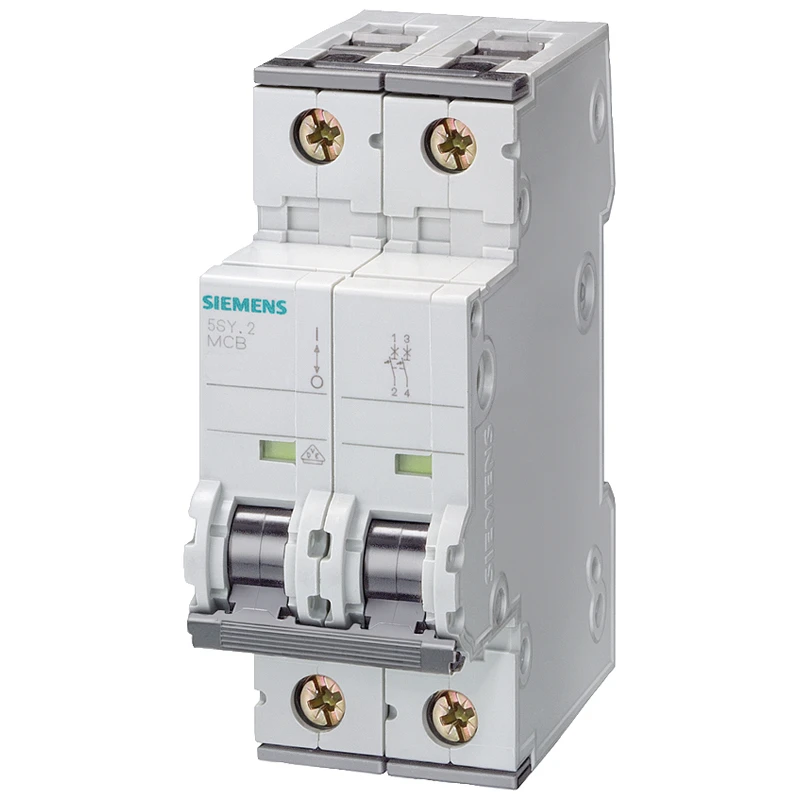

Siemens MCB DP Type D 16A 10Ka
£69.86 Incl. VAT
Siemens miniature circuit breaker is used to protect systems and installations in buildings and for industrial applications. The devices are approved for worldwide use according to IEC standards for power supply systems. It is used in industrial applications and plant engineering, miniature circuit breakers can be supplemented with additional components, such as auxiliary switches, fault signal contacts, shunt trips, undervoltage releases, remote controlled mechanism, RC units, and arc fault detection devices. · · · Halogen-free · · Silicon-free · · Sealable-free · · 20,000 mechanical switching cycles · · Quick assembly system · · Ambient temperature: -25°C to 55°C · · Overvoltage category is 3 · · Snap-on fixing system
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) D Degree of protection (IP rating) IP20 Voltage type AC Recess depth 70 mm Rated current 16 A Rated voltage 400 V Width in number of modular spacings 2 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated insulation voltage Ui 440 V Number of poles (total) 2 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Over voltage category 3 Pollution degree 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 20 kA Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -40 – 70 °C Additional equipment possible Yes Concurrently switching N-neutral No
