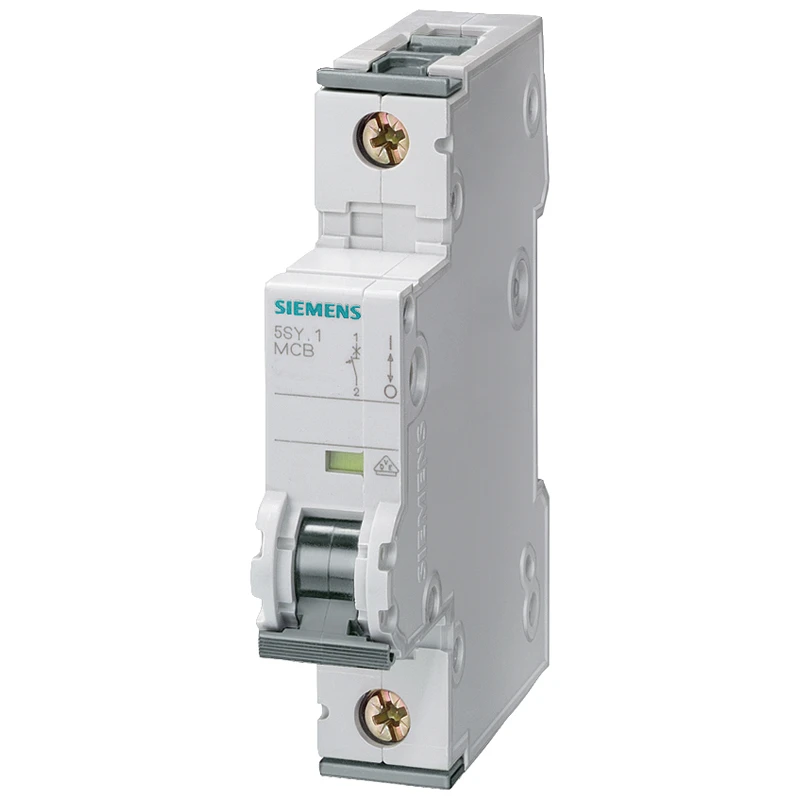

Siemens MCB Single Pole C Trip 20A 6Ka
Siemens MCB Single Pole C Trip 20A 6Ka
Siemens MCB Single Pole C Trip 20A 6Ka - Image 2
Siemens MCB Single Pole C Trip 20A 6Ka - Image 3

Siemens MCB Single Pole C Trip 20A 6Ka

£19.79 Incl. VAT

The Siemens 5SY supplementary protectors are thermal/magnetic overcurrent protected devices that are intended for general industrial use. · · · Thermal magnetic protection · · High interrupting rating/rated switching capacity of up to 14,000A · · For general industrial use · · Value range of the supply voltage frequency: 50/60 Hz · · Protection class IP: IP20, with connected conductors · · Power loss [W] for rated value of the current at AC in hot operating state per pole: 1.7 W · · Operating voltage at DC rated value maximum: 72 V · · Overvoltage: category III

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 5SY6120-7 Categories: , , Brand: Part Number: 2500126764

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) C Voltage type AC Rated current 20 A Rated voltage 400 V Width in number of modular spacings 1 Rated insulation voltage Ui 440 V Number of poles (total) 1 Current limiting class 3 Pollution degree 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Connectable conductor cross section solid-core 0.75 – 35.0 mm² Frequency 50 – 50 Hz Recess depth 70 mm Number of protected poles 1 Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -25 – 55 °C Additional equipment possible Yes Concurrently switching N-neutral No Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
