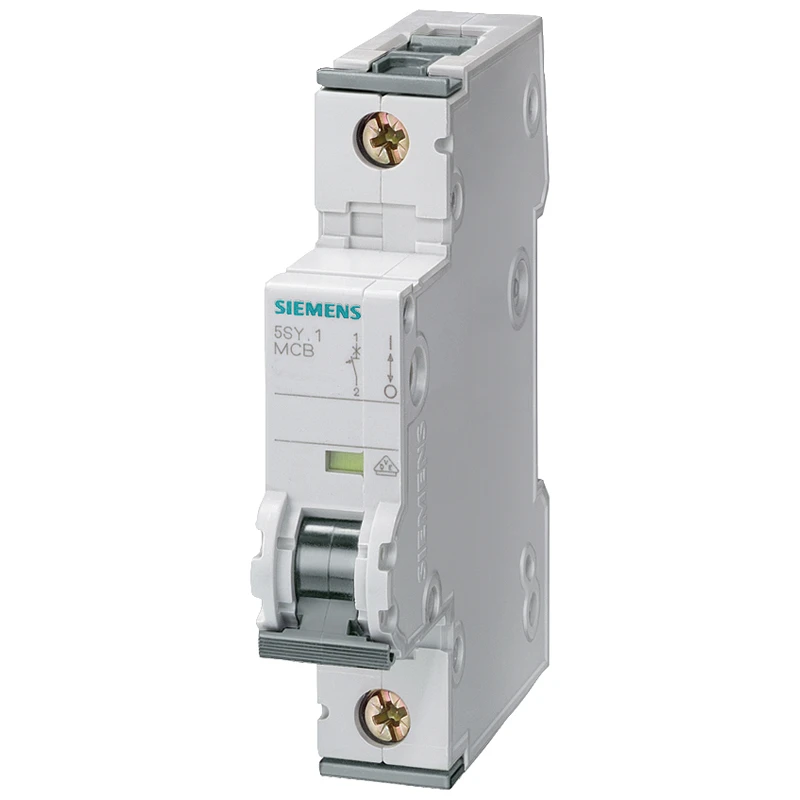

Siemens MCB Single Pole C Trip 25A 6Ka
Siemens MCB Single Pole C Trip 25A 6Ka
Siemens MCB Single Pole C Trip 25A 6Ka - Image 2
Siemens MCB Single Pole C Trip 25A 6Ka - Image 3

Siemens MCB Single Pole C Trip 25A 6Ka

£19.79 Incl. VAT

Siemens miniature circuit breaker is used to protect systems and installations in buildings and for industrial applications. The devices are approved for worldwide use according to IEC standards for power supply systems. It is used in industrial applications and plant engineering, miniature circuit breakers can be supplemented with additional components, such as auxiliary switches, fault signal contacts, shunt trips, undervoltage releases, remote controlled mechanism, RC units, and arc fault detection devices. · · · Halogen-free · · Silicon-free · · Sealable-free · · 20,000 mechanical switching cycles · · Quick assembly system · · Ambient temperature: -25°C to 55°C · · Overvoltage category is 3 · · Snap-on fixing system

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 5SY6125-7 Categories: , , Brand: Part Number: 2500126765

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) C Voltage type AC Rated insulation voltage Ui 440 V Number of poles (total) 1 Rated voltage 400 V Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 1 Recess depth 70 mm Rated current 25 A Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Pollution degree 3 Current limiting class 3 Over voltage category 3 Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -25 – 55 °C Additional equipment possible Yes Suitable for flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
