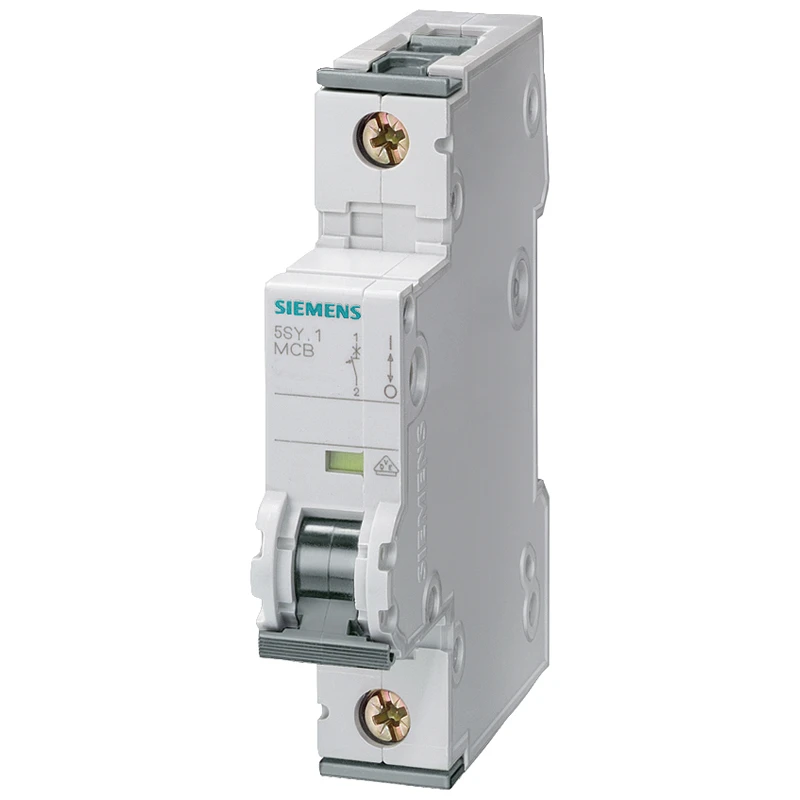

Siemens MCB Single Pole C Trip 32A 6Ka
Siemens MCB Single Pole C Trip 32A 6Ka
Siemens MCB Single Pole C Trip 32A 6Ka - Image 2
Siemens MCB Single Pole C Trip 32A 6Ka - Image 3

Siemens MCB Single Pole C Trip 32A 6Ka

£19.26 Incl. VAT

Siemens miniature circuit breaker is used to protect systems and installations in buildings and for industrial applications. The devices are approved for worldwide use according to IEC standards for power supply systems. It is used in industrial applications and plant engineering, miniature circuit breakers can be supplemented with additional components, such as auxiliary switches, fault signal contacts, shunt trips, undervoltage releases, remote controlled mechanism, RC units, and arc fault detection devices. · · · Halogen-free · · Silicon-free · · Sealable-free · · 20,000 mechanical switching cycles · · Quick assembly system · · Ambient temperature: -25°C to 55°C · · Overvoltage category is 3 · · Snap-on fixing system

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 5SY6132-7 Categories: , , Brand: Part Number: 2500126766

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Voltage type AC Tripping characteristic (type/curve) C Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 1 Number of poles (total) 1 Pollution degree 3 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Number of protected poles 1 Over voltage category 3 Rated insulation voltage Ui 440 V Rated current 32 A Rated voltage 400 V Recess depth 70 mm Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -25 – 55 °C Concurrently switching N-neutral No Additional equipment possible Yes Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
