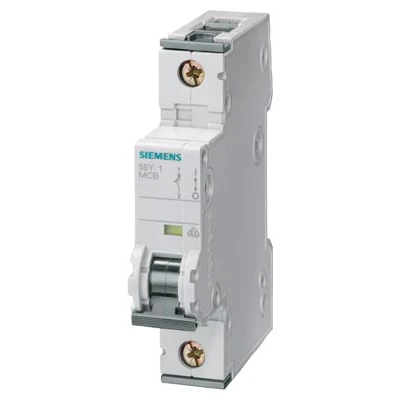

Siemens MCB SP Type C 1A 10Ka
£27.76 Incl. VAT
Siemens 5SY4101-7 1 Pole 1A Type C MCB with 5SY4 design and quick assembly mounting system. This MCB has breaking capacity of 10kA. It meets EN 60898 and IEC 60947-2 standards. The properties for main switches in accordance with EN 60204-1. · · · Breaking Capacity: 10kA · · Current Rating: 1A · · Height: 90mm · · Range: Sentron · · Width: 18mm · · Weight: 164g · · Depth: 76mm
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Degree of protection (IP rating) IP20 Voltage type AC Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 35 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 35 kA Pollution degree 3 Over voltage category 3 Number of poles (total) 1 Rated insulation voltage Ui 440 V Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class 3 Rated voltage 400 V Width in number of modular spacings 1 Rated current 1 A Recess depth 70 mm Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -40 – 70 °C Additional equipment possible Yes Concurrently switching N-neutral No
