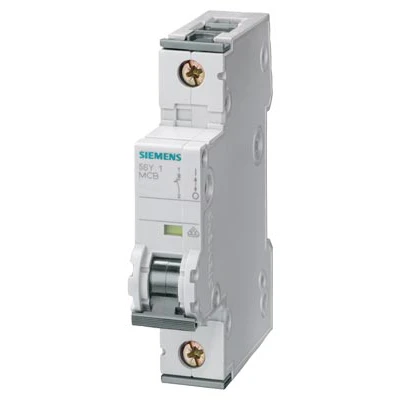

Siemens MCB SP Type C 6A 10Ka
Siemens MCB SP Type C 6A 10Ka
Siemens MCB SP Type C 6A 10Ka - Image 2

Siemens MCB SP Type C 6A 10Ka

£25.69 Incl. VAT

Siemens 5SY4106-7 1 Pole 6A Type C MCB with 5SY4 design and quick assembly mounting system. This MCB has breaking capacity of 10kA. It meets EN 60898 and IEC 60947-2 standards. The properties for main switches in accordance with EN 60204-1. · · · Breaking Capacity: 10kA · · Current Rating: 6A · · Height: 90mm · · Range: Sentron · · Width: 18mm · · Weight: 158g · · Depth: 76mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 5SY4106-7 Categories: , , Brand: Product Code: 2500119093

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Voltage type AC Degree of protection (IP rating) IP20 Rated current 6 A Rated insulation voltage Ui 440 V Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 35 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 35 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Current limiting class 3 Over voltage category 3 Pollution degree 3 Recess depth 70 mm Rated voltage 400 V Width in number of modular spacings 1 Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -40 – 70 °C Additional equipment possible Yes Concurrently switching N-neutral No
