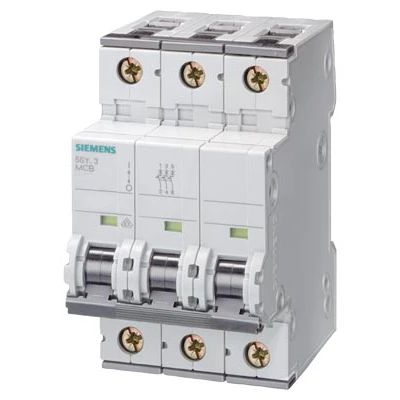

Siemens MCB TP Type C 16A 10Ka

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Degree of protection (IP rating) IP20 Voltage type AC Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 20 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated insulation voltage Ui 440 V Number of poles (total) 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Current limiting class 3 Over voltage category 3 Pollution degree 3 Width in number of modular spacings 3 Rated voltage 400 V Recess depth 70 mm Rated current 16 A Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -40 – 70 °C Concurrently switching N-neutral No Additional equipment possible Yes
