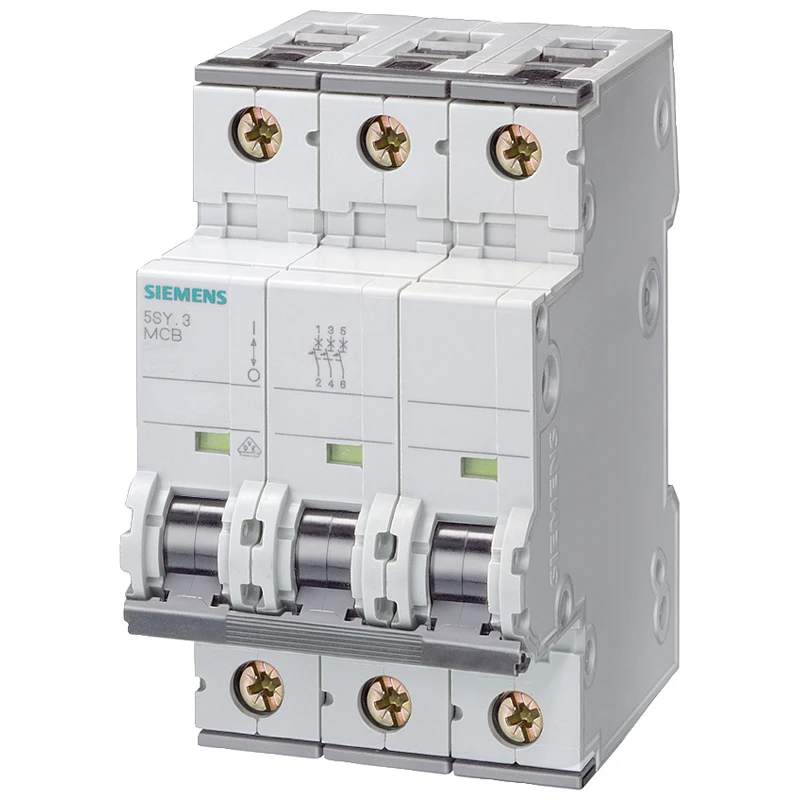

Siemens MCB Triple Pole Type D 10A 10Ka
Siemens MCB Triple Pole Type D 10A 10Ka
Siemens MCB Triple Pole Type D 10A 10Ka - Image 2
Siemens MCB Triple Pole Type D 10A 10Ka - Image 3
Siemens MCB Triple Pole Type D 10A 10Ka - Image 4

Siemens MCB Triple Pole Type D 10A 10Ka

£116.45 Incl. VAT

Siemens miniature circuit breaker is used to protect systems and installations in buildings and for industrial applications. The devices are approved for worldwide use according to IEC standards for power supply systems. It is used in industrial applications and plant engineering, miniature circuit breakers can be supplemented with additional components, such as auxiliary switches, fault signal contacts, shunt trips, undervoltage releases, remote controlled mechanism, RC units, and arc fault detection devices. · · · Halogen-free · · Silicon-free · · Sealable-free · · 20,000 mechanical switching cycles · · Quick assembly system · · Ambient temperature: -25°C to 55°C · · Overvoltage category is 3 · · Snap-on fixing system

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 5SY4310-8 Categories: , , Brand: Part Number: 2500117992

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) D Voltage type AC Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 20 kA Rated current 10 A Recess depth 70 mm Rated insulation voltage Ui 440 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Pollution degree 3 Over voltage category 3 Width in number of modular spacings 3 Rated voltage 400 V Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Number of poles (total) 3 Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -40 – 70 °C Additional equipment possible Yes Concurrently switching N-neutral No Suitable for flush-mounted installation No
