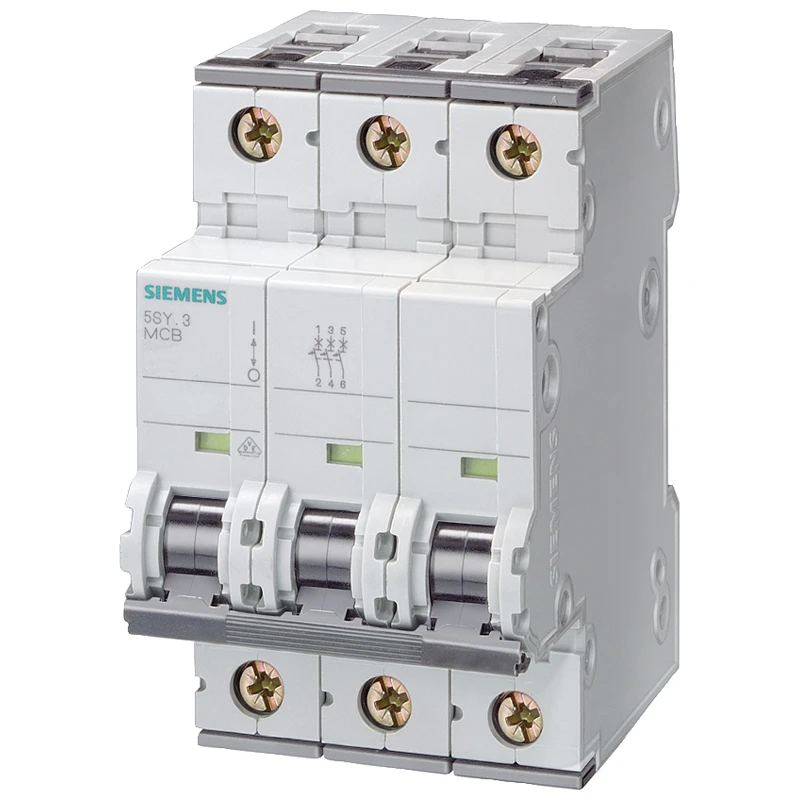

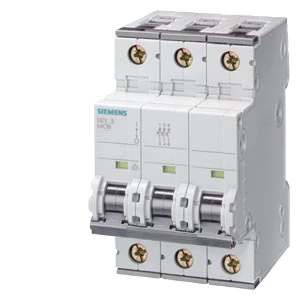

Siemens MCB Triple Pole Type D 25A 10Ka
Siemens MCB Triple Pole Type D 25A 10Ka
Siemens MCB Triple Pole Type D 25A 10Ka - Image 2
Siemens MCB Triple Pole Type D 25A 10Ka - Image 3
Siemens MCB Triple Pole Type D 25A 10Ka - Image 4

Siemens MCB Triple Pole Type D 25A 10Ka

£116.45 Incl. VAT

Siemens miniature circuit breaker is used to protect systems and installations in buildings and for industrial applications. The devices are approved for worldwide use according to IEC standards for power supply systems. It is used in industrial applications and plant engineering, miniature circuit breakers can be supplemented with additional components, such as auxiliary switches, fault signal contacts, shunt trips, undervoltage releases, remote controlled mechanism, RC units, and arc fault detection devices. · · · Halogen-free · · Silicon-free · · Sealable-free · · 20,000 mechanical switching cycles · · Quick assembly system · · Ambient temperature: -25°C to 55°C · · Overvoltage category is 3 · · Snap-on fixing system

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 5SY4325-8 Categories: , , Brand: Part Number: 2500118019

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) D Voltage type AC Degree of protection (IP rating) IP20 Rated voltage 400 V Width in number of modular spacings 3 Rated current 25 A Recess depth 70 mm Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Number of protected poles 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated insulation voltage Ui 440 V Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 20 kA Number of poles (total) 3 Over voltage category 3 Pollution degree 3 Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -40 – 70 °C Suitable for flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible Yes
