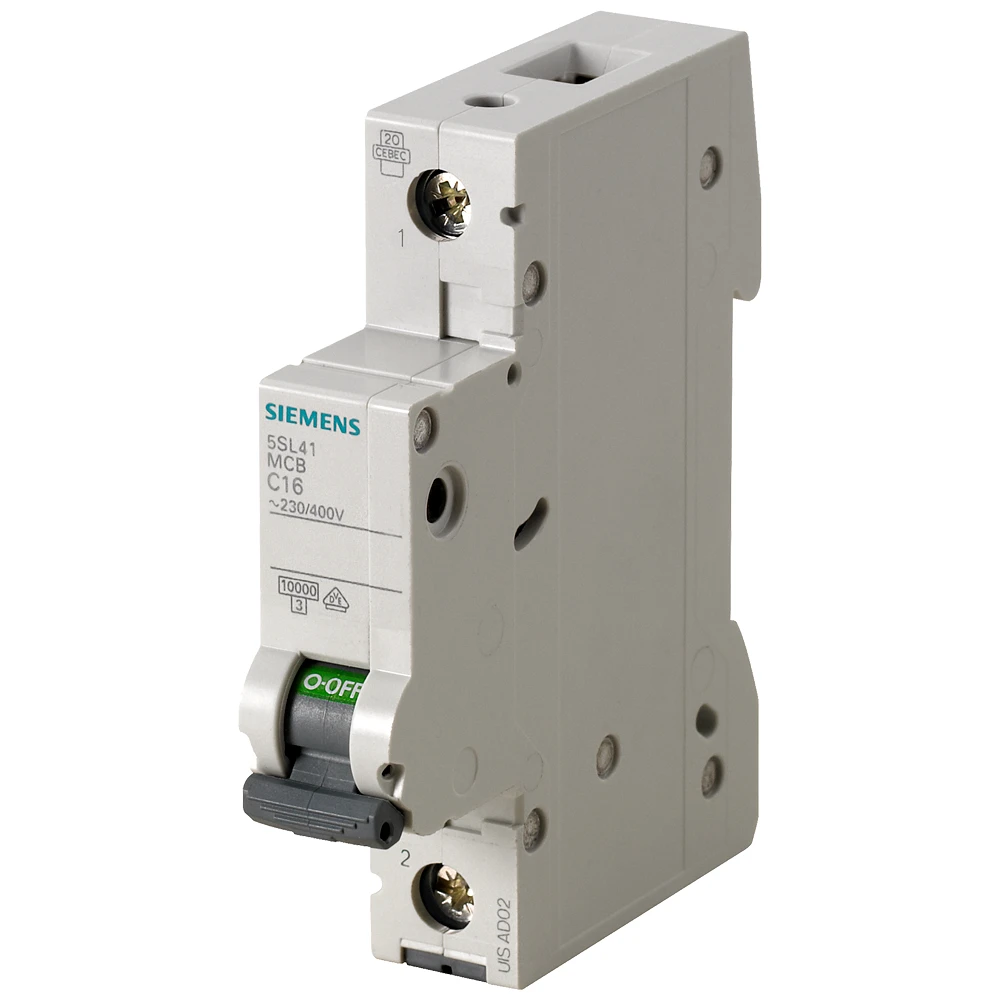

Siemens Miniature Circuit Breaker 230/400 V 1

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Degree of protection (IP rating) IP20 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Voltage type AC Number of poles (total) 1 Rated current 32 A Rated voltage 400 V Width in number of modular spacings 1 Pollution degree 2 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Over voltage category 3 Current limiting class 3 Recess depth 70 mm Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 25.0 mm² Connectable conductor cross section multi-wired 0.75 – 25.0 mm² Ambient temperature during operating -25 – 55 °C Additional equipment possible Yes Concurrently switching N-neutral No Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
