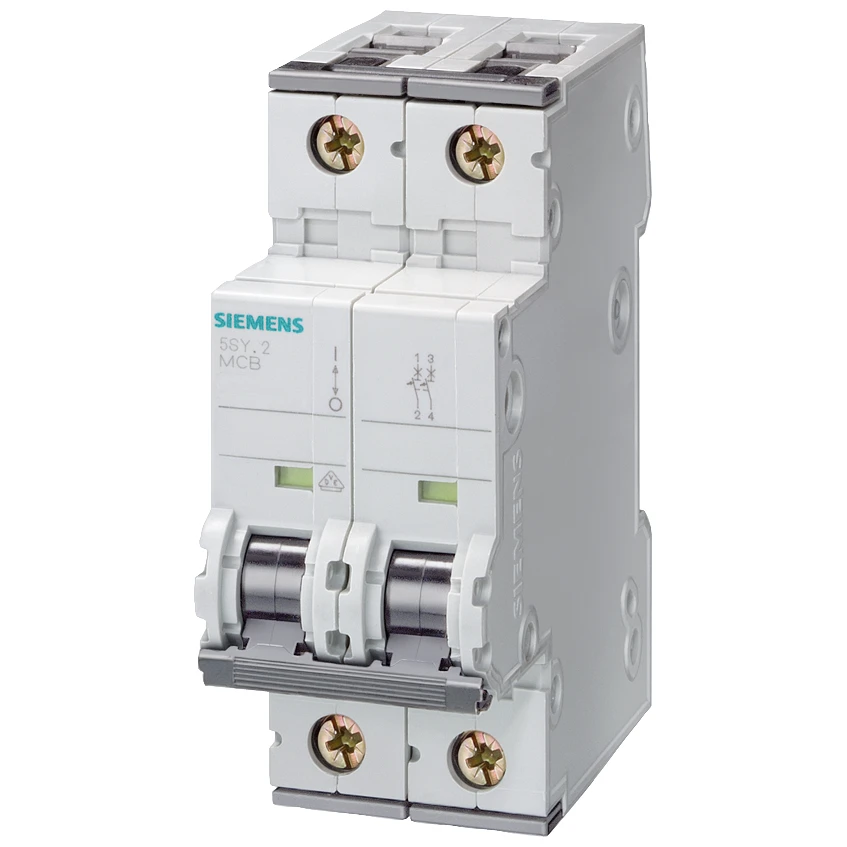

Siemens Miniature Circuit Breaker 230 V 10kA, 1+N-Pole, C, 2A, D=70 Mm

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) C Voltage type AC Rated current 2 A Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 35 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 35 kA Rated insulation voltage Ui 250 V Over voltage category 3 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Pollution degree 3 Number of protected poles – Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 2 Width in number of modular spacings 2 Rated voltage 230 V Recess depth 70 mm Frequency 50 – 50 Hz Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Ambient temperature during operating -40 – 70 °C Concurrently switching N-neutral Yes Additional equipment possible Yes
