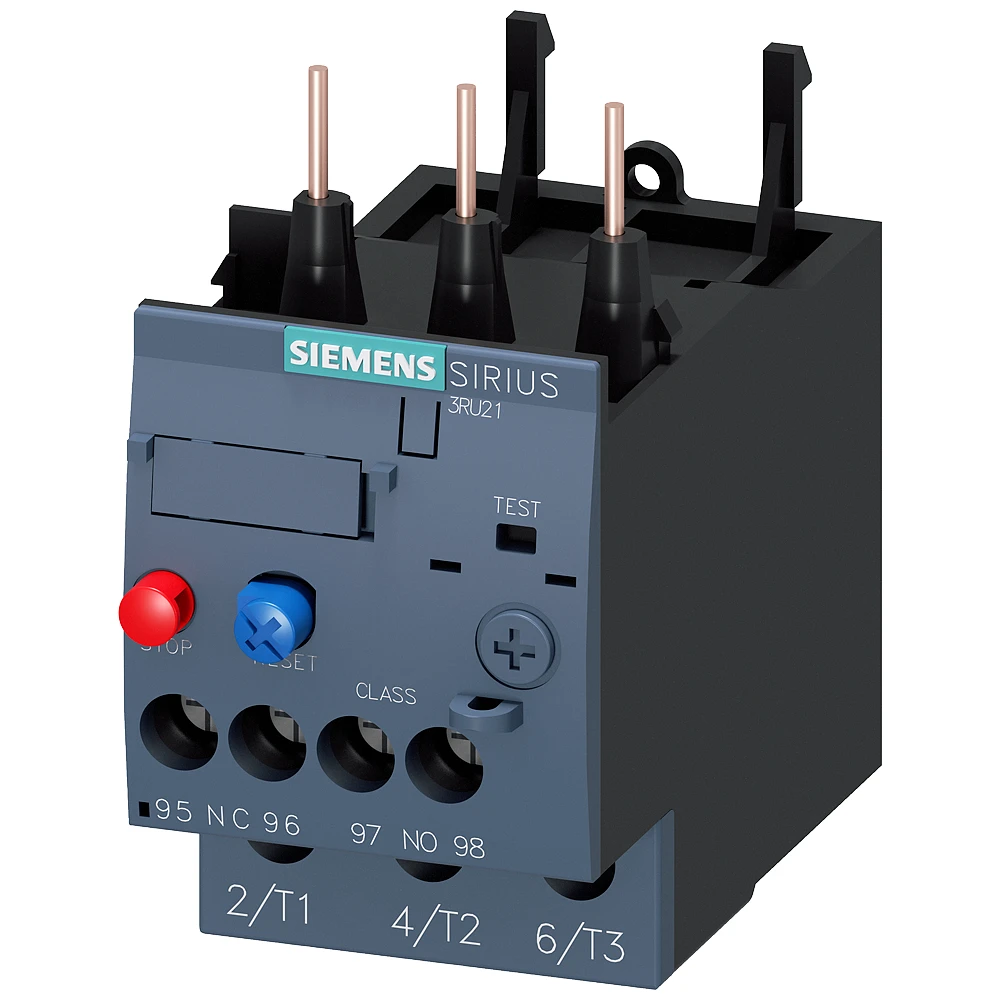

Siemens Overload Relay 1.8-2.5 A Motor Protection S0, Class 10, Contactor Mounting
£56.99 Incl. VAT
Overload relay 1.8…2.5 A Thermal For motor protection Size S0, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure. This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Can be supplied with different setting ranges of the overload release. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation. The accessories consistently fit all sizes from S00 to S3. Simple, efficient and always up to date – SIRIUS modular system. · · · Overload relay 1.8-2.5 A motor protection S0, Class 10, contactor mounting
Description
Technical Specifications Technical Specifications Thermal overload relay Mounting method Direct attachment Type of electrical connection of main circuit Screw connection Release class CLASS 10 Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as change-over contact 0 Adjustable current range 1.8 – 2.5 A Max. rated operation voltage Ue 690 V Reset function automatic Yes Reset function input No Reset function push-button Yes
