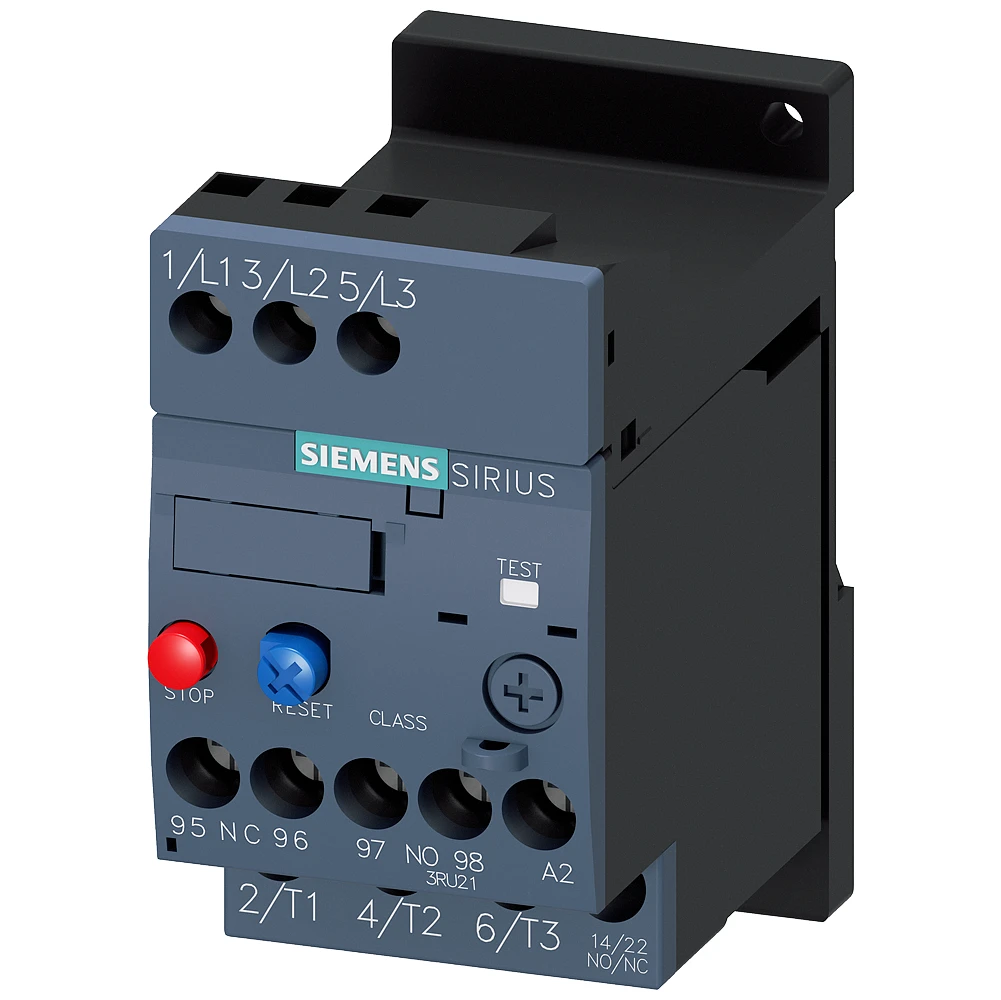

Siemens Overload Relay 11-16 A Motor Protection S00, Class 10
£67.70 Incl. VAT
Overload relay 11…16 A Thermal For motor protection Size S00, Class 10 Stand-alone installation Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure. This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Can be supplied with different setting ranges of the overload release. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation. The accessories consistently fit all sizes from S00 to S3. Simple, efficient and always up to date – SIRIUS modular system.
Description
Technical Specifications Technical Specifications Thermal overload relay Mounting method Separate positioning Release class CLASS 10 Type of electrical connection of main circuit Screw connection Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as change-over contact 0 Adjustable current range 11 – 16 A Max. rated operation voltage Ue 690 V Reset function input No Reset function automatic Yes Reset function push-button Yes · Technical Data Sheet – Click to Download
