Siemens Overload Relay 30-36 A Motor Protection S0, Class 10, Contactor Mounting
Siemens Overload Relay 30-36 A Motor Protection S0, Class 10, Contactor Mounting

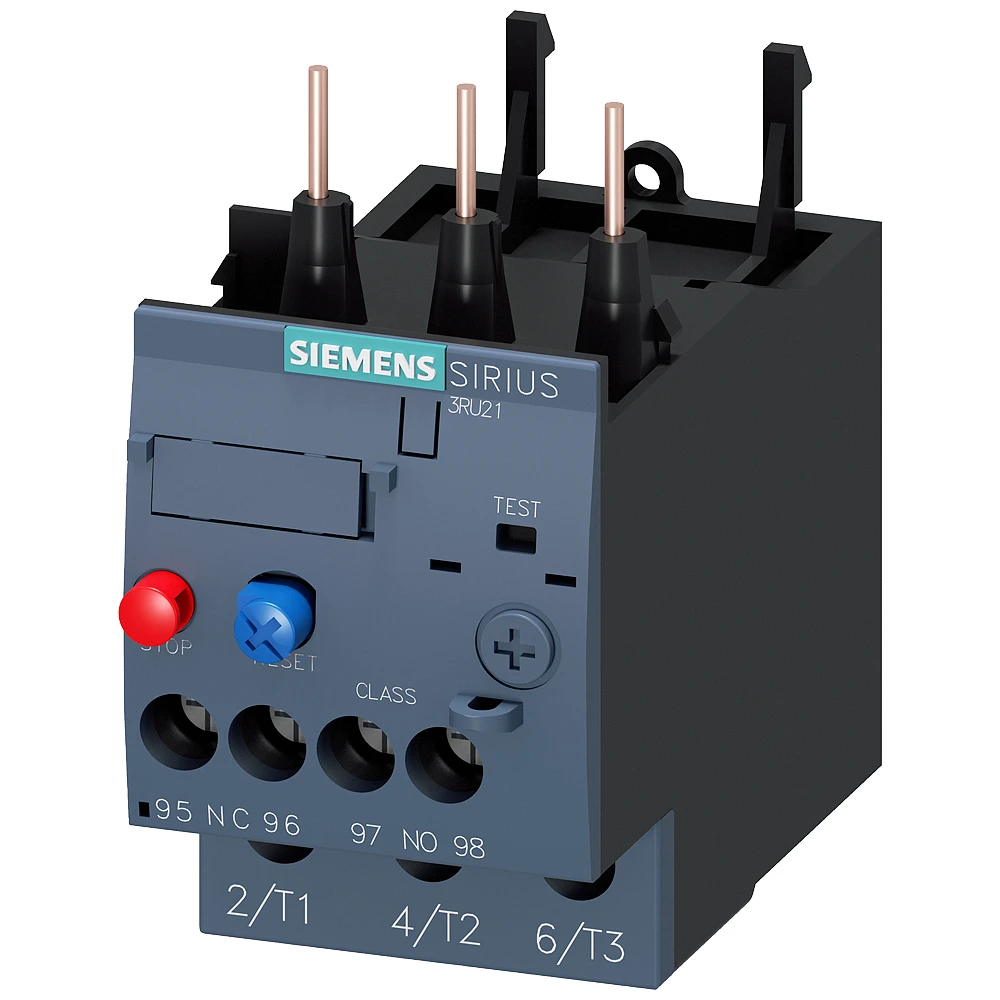

Siemens Overload Relay 30-36 A Motor Protection S0, Class 10, Contactor Mounting - Image 2

Siemens Overload Relay 30-36 A Motor Protection S0, Class 10, Contactor Mounting

£88.61 Incl. VAT

Overload relay 30…36 A Thermal For motor protection Size S0, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure. This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Can be supplied with different setting ranges of the overload release. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation. The accessories consistently fit all sizes from S00 to S3. Simple, efficient and always up to date – SIRIUS modular system.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RU2126-4PB0 Categories: , , , , , Brand: Product Code: 1050392394

Description

Technical Specifications  Technical Specifications Thermal overload relay Mounting method Direct attachment Release class CLASS 10 Type of electrical connection of main circuit Screw connection Max. rated operation voltage Ue 690 V Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally closed contact 1 Reset function input No Adjustable current range 30 – 36 A Reset function automatic Yes Reset function push-button Yes
