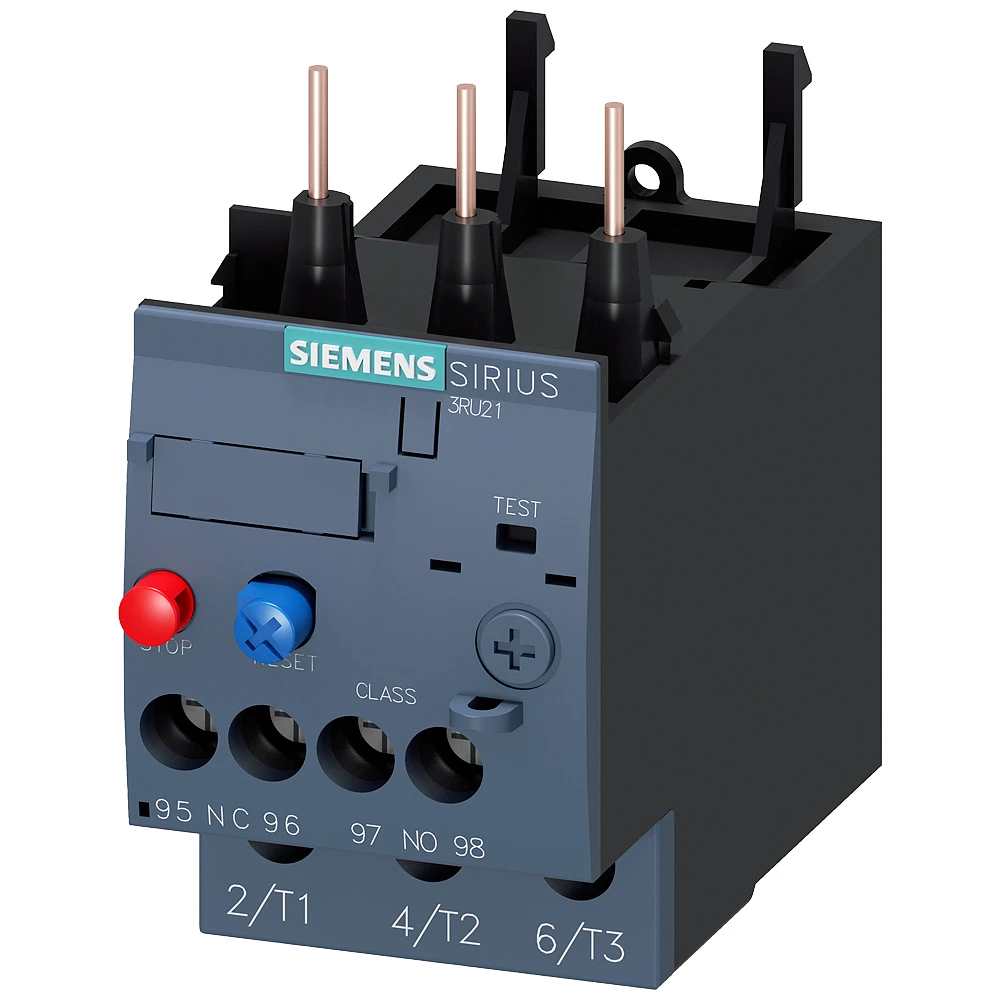

Siemens Overload Relay 4.5-6.3 A Motor Protection S0, Class 10, Contactor Mounting
Siemens Overload Relay 4.5-6.3 A Motor Protection S0, Class 10, Contactor Mounting
Siemens Overload Relay 4.5-6.3 A Motor Protection S0, Class 10, Contactor Mounting - Image 2

Siemens Overload Relay 4.5-6.3 A Motor Protection S0, Class 10, Contactor Mounting

£56.99 Incl. VAT

Overload relay 4.5…6.3 A Thermal For motor protection Size S0, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure. This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Can be supplied with different setting ranges of the overload release. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation. The accessories consistently fit all sizes from S00 to S3. Simple, efficient and always up to date – SIRIUS modular system.

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RU2126-1GB0 Brand: Product Code: 1050392384

Description

Technical Specifications  Technical Specifications Thermal overload relay Release class CLASS 10 Mounting method Direct attachment Type of electrical connection of main circuit Screw connection Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as normally open contact 1 Max. rated operation voltage Ue 690 V Adjustable current range 4.5 – 6.3 A Number of auxiliary contacts as change-over contact 0 Reset function input No Reset function automatic Yes Reset function push-button Yes
