Siemens P/B 22mm Round Metal Shiny Y
£7.30 Incl. VAT

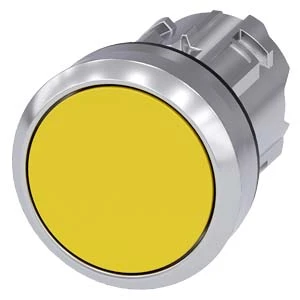

Siemens standard round pushbutton made up of a plastic actuator surrounded by a high gloss silver colour metal ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Momentary · · Type of unlocking device: None · · Mechanical sevice life: 10000000 cycles · · Maximum operating frequency: 3600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C
Description
Technical Specifications Technical Specifications Front element for push button Construction type lens Round Colour button Yellow Material front ring Metal Type of button Flat Colour front ring Chrome Hole diameter 22.3 mm Number of command positions 1 Width opening 29.5 mm Height opening 11 mm Suitable for illumination No Labelled No With protective cover No With front ring Yes Spring-return No Switching function latching No
