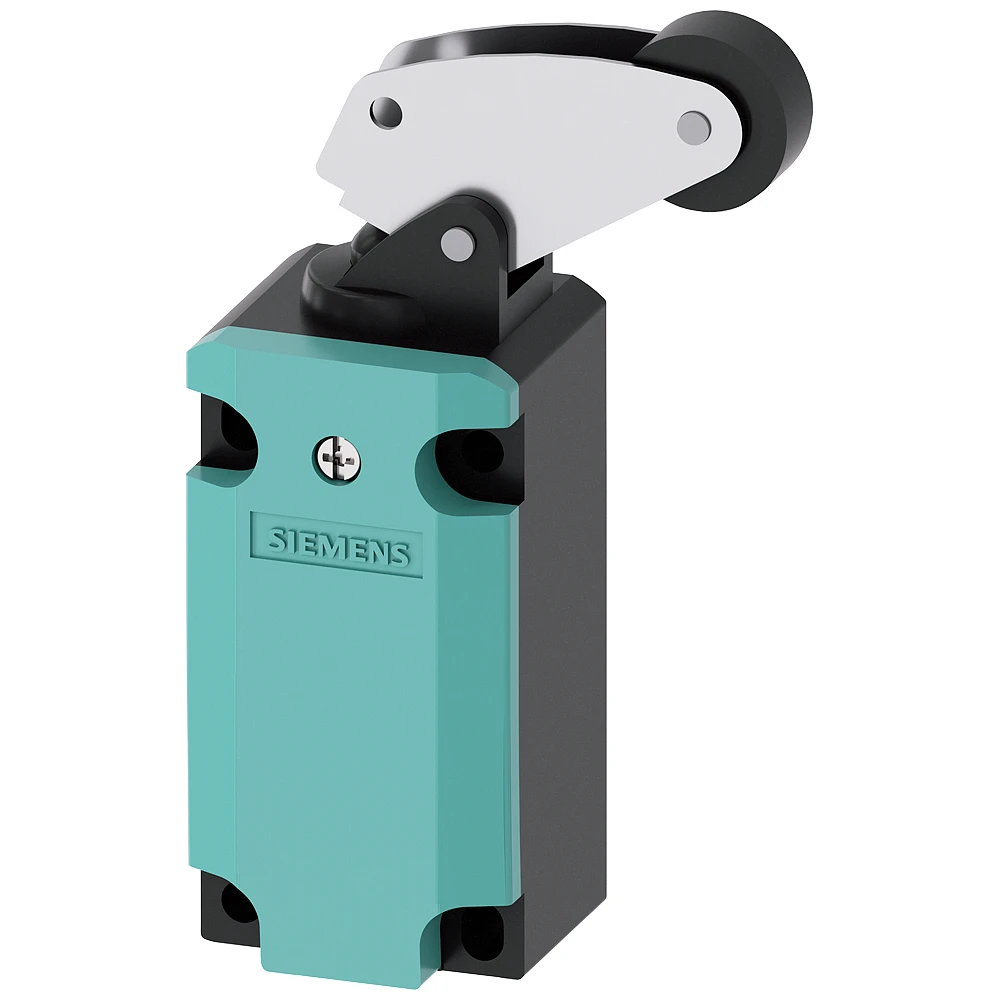

Siemens Position Switch, Metal Encl. 40 Mm, EN50041, Device Connection
£56.15 Incl. VAT
Position switch Metal enclosure 40 mm according to EN 50041 Device connection 1x (M20 x 1.5) 1 NO/1 NC quick action contacts Angular roller lever, metal lever and plastic roller 22 mm Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment. The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input. Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available. Safety is a SIRIUS business. · · · Position switch, metal encl. 40 mm, EN50041, device connection
Description
Technical Specifications Technical Specifications End switch Explosion safety category for dust None Explosion safety category for gas None Interface type None Type of interface for safety communication None Switching function Quick-break switch Degree of protection (IP rating) IP66/IP67 Construction type housing Cuboid Coating housing Lacquered Housing material Metal Type of control element Square roller lever Degree of protection (NEMA) 12 Alignment of the control element Roller cam straight Rated operation current Ie at AC-15, 125 V 6 A Type of electric connection Cable entry metrical Number of safety auxiliary contacts 1 Rated operation current Ie at DC-13, 24 V 3 A Rated operation current Ie at AC-15, 24 V 6 A Number of contacts as normally open contact 1 Number of contacts as normally closed contact 1 Rated operation current Ie at DC-13, 125 V 0.55 A Number of contacts as change-over contact 0 Height of sensor 37.3 mm Width sensor 40 mm Rated operation current Ie at AC-15, 230 V – A Rated operation current Ie at DC-13, 230 V – A Diameter sensor – mm Length of sensor 118 mm Ambient temperature during operating -25 – 85 °C Switching function latching No Output electronic No Forced opening Yes Suitable for safety functions Yes With status indication No
