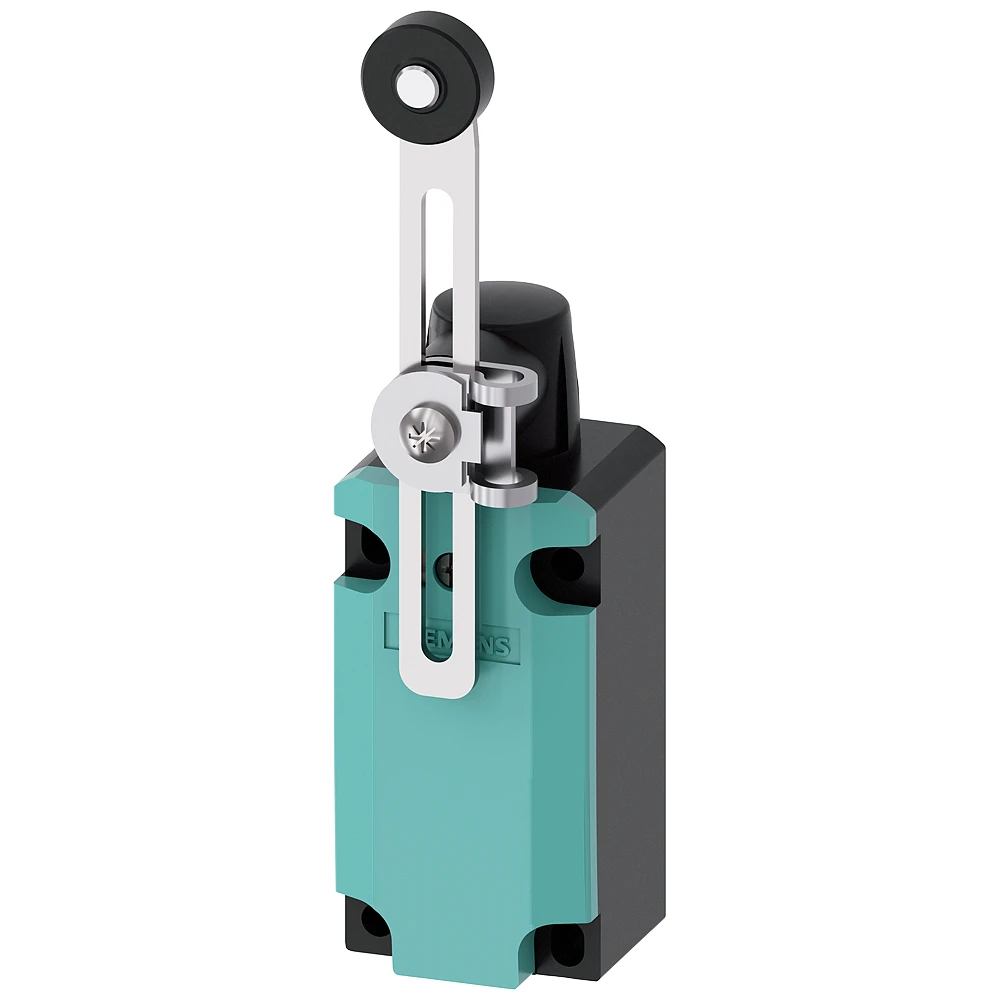

Siemens Position Switch, Metal Encl. 40 Mm, EN50041, Device Connection
£66.60 Incl. VAT
Position switch Metal enclosure 40 mm according to EN 50041 Device connection 1x (M20 x 1.5) 1 NO/1 NC quick action contacts Rotary actuator right/left adjustable with adjustable-length Metal lever 100 mm long and plastic roller 19 mm Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment. The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input. Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available. Safety is a SIRIUS business.
Description
Technical Specifications Technical Specifications End switch Type of interface for safety communication None Explosion safety category for gas None Explosion safety category for dust None Interface type None Degree of protection (IP rating) IP66/IP67 Coating housing Lacquered Switching function Quick-break switch Type of control element Adjustable rotary lever Housing material Metal Alignment of the control element Roller cam straight Construction type housing Cuboid Degree of protection (NEMA) 12 Type of electric connection Cable entry metrical Rated operation current Ie at AC-15, 230 V – A Rated operation current Ie at DC-13, 230 V – A Diameter sensor – mm Length of sensor 192 mm Rated operation current Ie at DC-13, 125 V 0.55 A Rated operation current Ie at DC-13, 24 V 3 A Rated operation current Ie at AC-15, 24 V 6 A Number of safety auxiliary contacts 0 Number of contacts as change-over contact 0 Width sensor 40 mm Height of sensor 53.2 mm Number of contacts as normally open contact 1 Number of contacts as normally closed contact 1 Rated operation current Ie at AC-15, 125 V 6 A Ambient temperature during operating -25 – 85 °C With status indication No Suitable for safety functions No Switching function latching No Output electronic No Forced opening No
