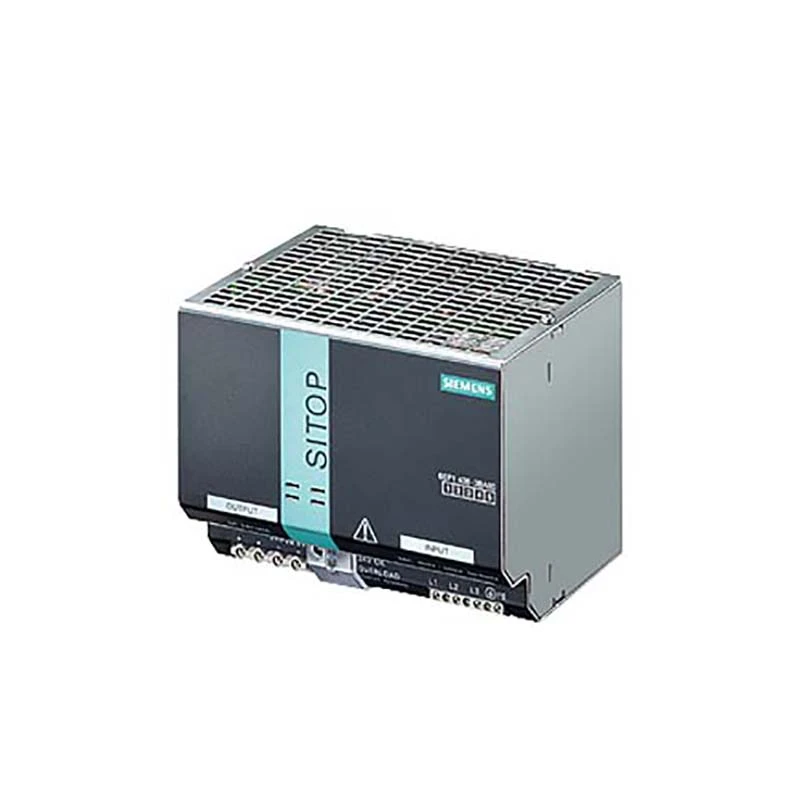

Siemens Power Supply Unit 480W 24V DC 2Kg 160 x 125 x 125mm 400V 30A
£474.72 Incl. VAT
Siemens 6EP1436-3BA00 SITOP MODULAR 24V DC/20A stabilized power supply with screw-type terminals. SITOP modular unit is the technology power supplies for demanding solutions. They offer maximum functionality for use in complex plants and machines. The wide-range input allows a connection to almost any electrical power system worldwide and ensures a high degree of safety even if there are large voltage fluctuations. They offer outstanding overload characteristics: Power boost delivers up to three-times the rated current for short periods of time, and with extra power of 150%, loads with high power consumption can be connected without any problems. And in the event of an overload, you can choose between constant current or automatic restart. The extremely high efficiency keeps energy consumption and heat buildup in the control cabinet low, and the compact metal enclosure also saves space. · · · Height: 125mm · · Width: 160mm · · Depth: 125mm · · Weight: 2kg · · Rating Amps: 20A · · Rating Watts: 480W · · Output Voltage Rating: 24V DC · · Input Voltage Range: 320-550V
Out of Stock
Description
Technical Specifications Technical Specifications DC-power supply SIL according to IEC 61508 None Degree of protection (IP rating) IP20 Voltage type of supply voltage AC Type of electric connection Screw connection Height 125 mm Width 160 mm Depth 125 mm Max. output current 1 20 A Power output 494 W Recess height 225 mm 1st secondary output voltage 24 – 24 V Nominal value output voltage 1 24 V Rated supply voltage at AC 50 Hz 400 – 500 V Rated supply voltage at AC 60 Hz 400 – 500 V Modular version Yes Short-circuit-proof Yes Direct mounting possible No Suitable for safety functions No Rail mounting possible Yes Output voltage stabilized Yes Secondary voltage adjustable Yes Stabilized Yes
