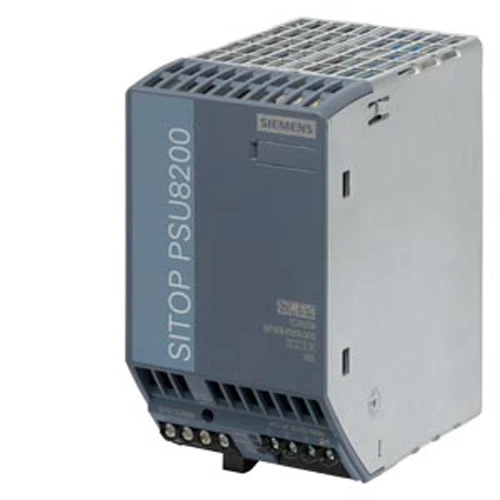

Siemens Psu8200 24 V/20 A Stabilized Power
£401.58 Incl. VAT
The SITOP modular 3-phase power supplies are technology power supplies for demanding solutions and provide maximum functionality for use in complex plants and machines. The input range enables connection to numerous power networks in the world and ensures high reliability even in the case of large voltage fluctuations. The Power Boost function supplies up to three times the nominal current over short durations. If overload occurs, there is a choice between constant current or latching disconnection. The high degree of efficiency minimizes energy consumption and heat generation in the control cabinet, and the compact metal enclosure also saves space. To further increase 24 V availability, the SITOP modular power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant. · · · 24 V/20 A · · Stabilized power supply input: 3 AC 400-500 V · · Output: 24 V DC/20 A · · Din Rail Mount
Out of Stock
Description
Technical Specifications Technical Specifications DC-power supply Voltage type of supply voltage AC Degree of protection (IP rating) IP20 Type of electric connection Screw connection Width 70 mm Height 125 mm Depth 125 mm Recess height 225 mm Nominal value output voltage 1 24 V Max. output current 1 20 A Power output 480 W Nominal value output current 1 20 A Recess width 70 mm 1st secondary output voltage 24 – 24 V Rated supply voltage at AC 50 Hz 400 – 400 V Rated supply voltage at AC 60 Hz 500 – 500 V Suitable for safety functions No Modular version Yes Short-circuit-proof Yes Secondary voltage adjustable Yes Rail mounting possible Yes Output voltage stabilized Yes Direct mounting possible No Stabilized Yes
