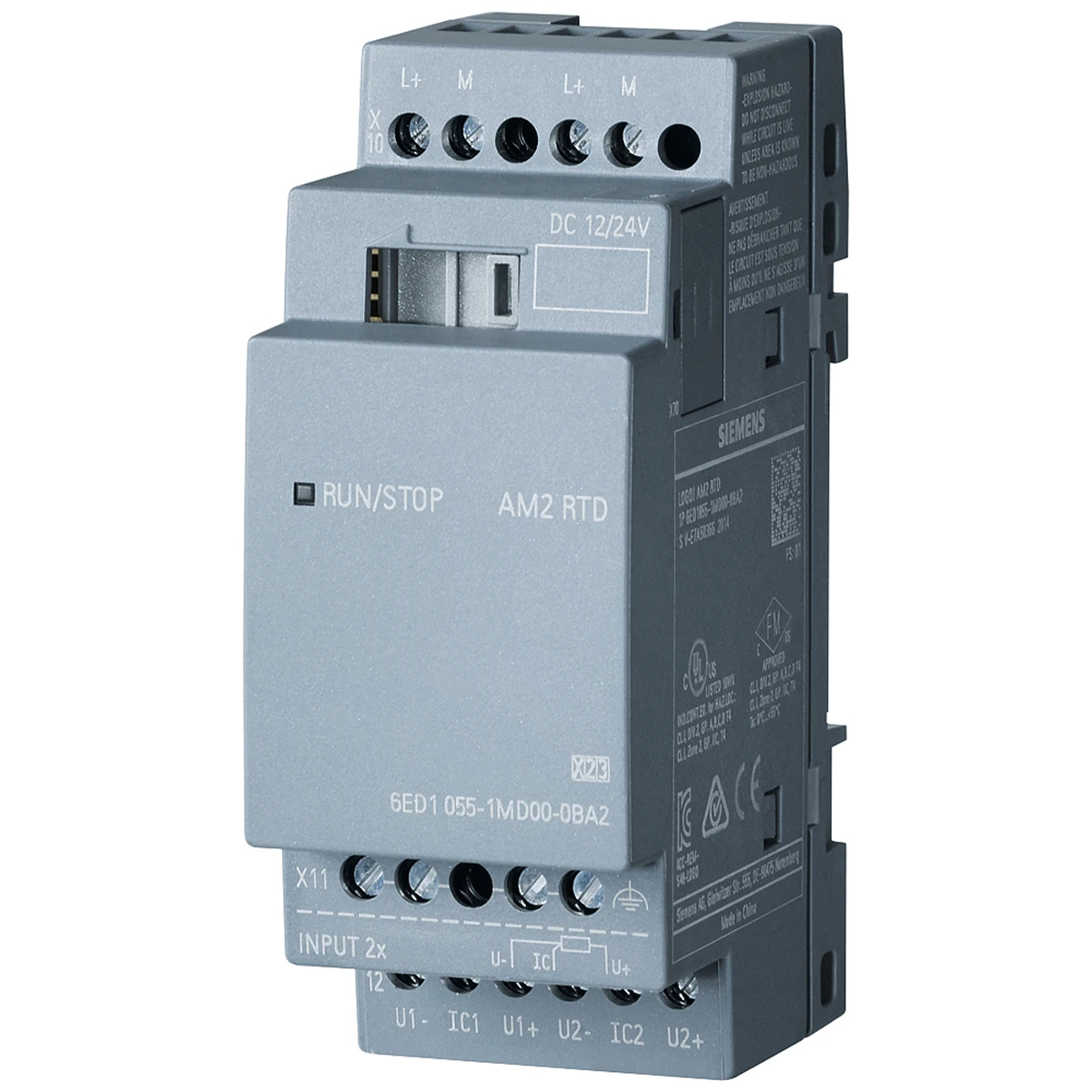

Siemens Rated Expansion Module Pu: Dc
Siemens Rated Expansion Module Pu: Dc
Siemens Rated Expansion Module Pu: Dc - Image 2

Siemens Rated Expansion Module Pu: Dc

£135.04 Incl. VAT

The LOGO! control system is perfectly suited for small-scale automation projects and makes life much easier by replacing many time switches and relays · · · counters and protective relays. · · Supply voltage permissible range: 10.8V – 28.8V · · Number of inputs: 2 · · Input type: Analogue · · Operating temperature: 0C to +55C · · Screw termination · · Output current: 300mA

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6ED1055-1MD00-0BA2 Category: Brand: Product Code: 2500999892

Description

Technical Specifications  Technical Specifications PLC analogue I/O-module Explosion safety category for gas None Explosion safety category for dust None Type of electric connection Screw connection Depth 58 mm Height 90 mm Width 35.5 mm Number of analogue inputs 2 Number of analogue outputs 0 Input, current No Input, thermocouple No Resolution of the analogue inputs 10 Bit Input, resistance thermometer Yes Analogue inputs configurable Yes Input, voltage No Input, resistor No Analogue outputs configurable No Appendant operation agent (Ex ia) No Appendant operation agent (Ex ib) No Input signal, configurable Yes Output, current No Output, voltage No Output signal configurable No Suitable for safety functions No
