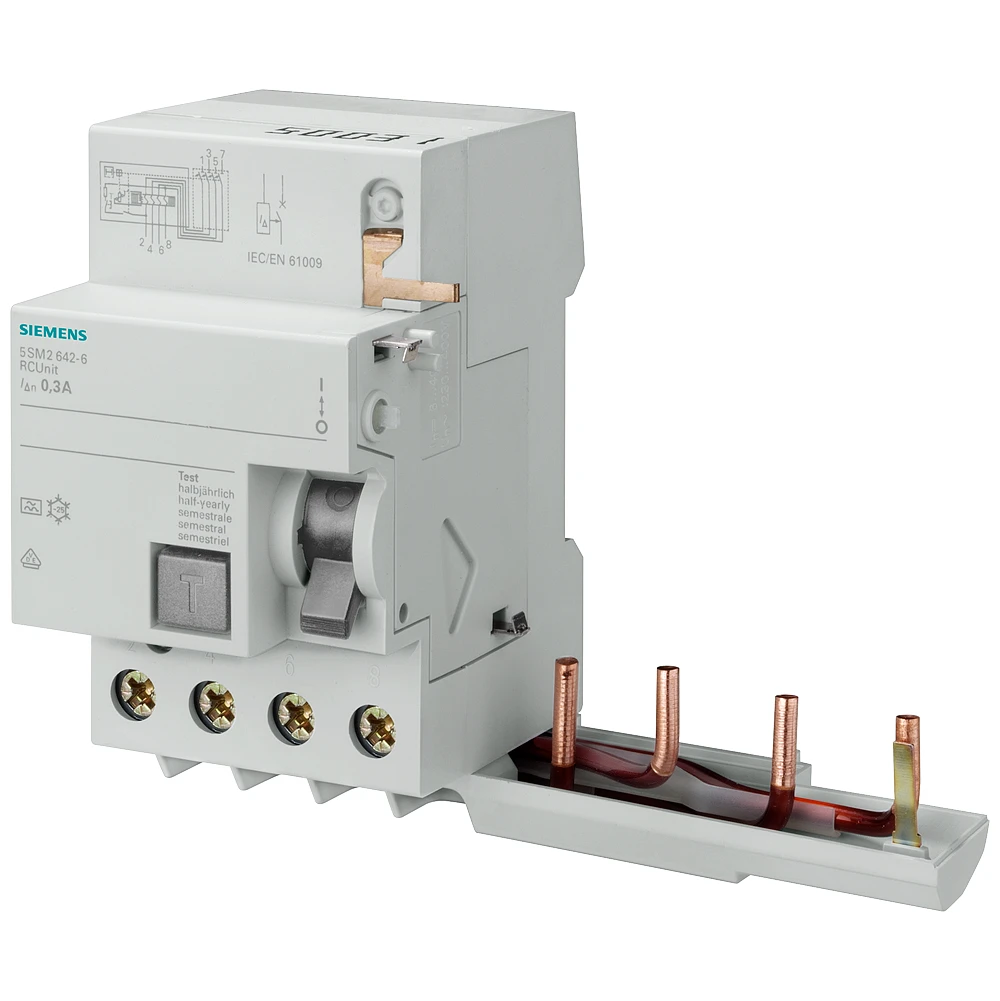

Siemens RC Unit, 4-Pole, Type AC, In: 40 A, 30 MA, Un AC: 400 V
£89.75 Incl. VAT
RC unit for 5SY, 4-pole, type AC, In: 40 A, 30 mA, Un AC: 400 V The RCD is the residual current device for touch protection. The patented residual current protective devices from Siemens are an important component of the SENTRON protective devices for electrical installations because they prevent life-threatening electrical accidents by safely disconnecting hazardous residual currents through grounding. Electrically ignited fires can be prevented as they occur. Whether by direct contact with energized operating parts or by indirect contact with equipment, protection is mainly achieved by a quick shutdown. The residual current operated circuit breakers are characterized primarily by: 1. Comprehensive protection from electric shock for personnel and property. 2. Whether sinusoidal residual alternating currents or smooth residual direct currents, Siemens provides the right type for all requirements and special versions. 3. Be protected according to the standards: All residual current operated circuit breakers correspond to the provisions of DIN VDE. 4. Optimized technology for your safety – only from Siemens.
Description
Technical Specifications Technical Specifications Residual current circuit breaker (RCCB) Frequency 50 Hz Mounting method DIN rail Leakage current type AC Degree of protection (IP rating) IP20 Rated current 40 A Rated fault current 30 A Rated impulse-withstand voltage (Uimp) 4 kV Recess depth 70 mm Rated voltage 400 V Number of poles 4 Width in number of modular spacings 3 Short-circuit breaking capacity (Icw) – kA Surge current capacity – kA Rated insulation voltage Ui 460 V Pollution degree 2 Connectable conductor cross section solid-core 1.5 – 25.0 mm² Connectable conductor cross section multi-wired 1.5 – 25.0 mm² Ambient temperature during operating 45 °C Additional equipment possible Yes Selective protection No With interlocking device No Short-time delayed tripping No
