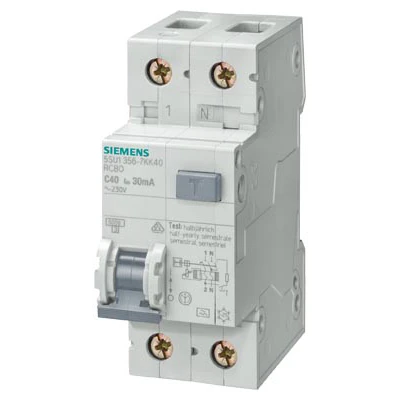

Siemens RCBO DP Type A C Characteristic 10A 30Ma 6Ka

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Disconnection characteristic Undelayed Degree of protection (IP rating) IP20 Rated current 10 A Voltage type AC Rated voltage 230 V Leakage current type A Recess depth 70 mm Rated fault current 0.03 A Rated short-circuit breaking capacity according to EN 61009 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Width in number of modular spacings 2 Current limiting class 3 Number of poles (total) 2 Rated short-circuit breaking capacity IEC 60947-2 15 kA Surge current capacity 1 kA Pollution degree 2 Over voltage category 3 Number of protected poles 1 Rated insulation voltage Ui 264 V Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Concurrently switching N-neutral Yes With interlocking device Yes Anti-nuisance tripping version Yes
