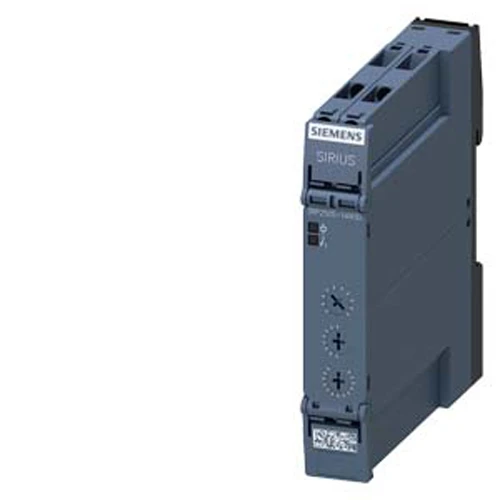

Siemens Relay Multifunction 1 Change-Over Conta
Siemens Relay Multifunction 1 Change-Over Conta
Siemens Relay Multifunction 1 Change-Over Conta - Image 2

Siemens Relay Multifunction 1 Change-Over Conta

£143.24 Incl. VAT

Timing relay, Multifunction 1 change-over contact, 13 functions 7 time ranges (0.05 s…100 h) 12…240 V AC/DC at 50/60 Hz AC with LED, Screw terminal timing relay SIRIUS 3RP25, 13 functions, for all switching operations involving time delays in control, starting, protection and regulation circuits. Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labeled cover caps, removable terminals and much more. Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies. The scope of supply already includes adhesive films for marking of functions. The 3RP25 timing relays replace the well-proven 3RP15 series. SIRIUS relays – one range for every application. · · · Relay output Yes · · semi-conductor output No · · Type of voltage of the control supply voltage AC/DC · · Control supply voltage frequency 1 50WSXYZDEL. 60 Hz · · Control supply voltage 1 at DC 12WSXYZDEL. 240 V

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RP2505-1AW30 Categories: , , , , , Brand: Product Code: 2501251715

Description

Technical Specifications  Technical Specifications Timer relay Type of electric connection Screw connection Voltage type for actuating AC/DC Height 100 mm Width 17.5 mm Depth 90 mm Number of outputs, undelayed, normally closed contact 0 Number of outputs, undelayed, change-over contact 0 Number of outputs, undelayed, normally open contact 0 Number of outputs, delayed, normally open contact 0 Number of outputs, delayed, normally closed contact 0 Number of outputs, delayed, change-over contact 1 Time range 0.05 – 360000.0 s Rated control supply voltage at AC 50 Hz 12 – 240 V Rated control supply voltage at AC 60 Hz 12 – 240 V Rated control supply voltage at DC 12 – 240 V With semiconductor output No Outputs, reversible delayed/undelayed No Suitable for DIN rail (top hat rail) mounting No Remote operation possible No Function delay on de-energization No Function star-delta No Function delay-on energization Yes Function floating contact on energization Yes Function floating contact on de-energization Yes Function pulse shaping Yes Function flashing, starting with pause, fixed time Yes Function flashing, starting with pulse, fixed time Yes Clock function, starting with pulse, variable No Clock function, starting with pause, variable No Suitable as remote control No Pluggable on auxiliary contact block No
