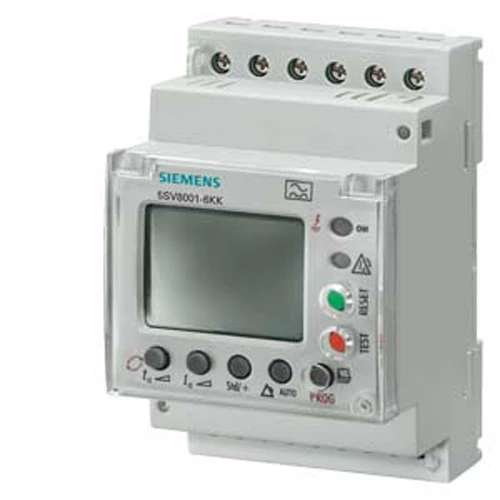

Siemens Residual Current Monitoring Device Digital, Type A IDN 0.03 A 30 A 0.02 10 Sec. (.
£504.06 Incl. VAT
Differential current monitoring device Digital, Type A IDN 0.03 A 30 A 0.02 10 sec. (INS, SEL) The RCD is the residual current device for touch protection The patented residual current protective devices from Siemens are an important component of the SENTRON protective components for electrical installations because they prevent life-threatening electrical accidents by safely disconnecting hazardous residual currents through grounding. Electrically ignited fires can be prevented as they occur. Whether by direct contact with energized operating parts or by indirect contact with equipment, protection is mainly achieved by a quick shutdown. The Siemens 5SV RCCBs are characterized primarily by: 1. Comprehensive protection from electric shock for personnel and property. 2. Whether sinusoidal residual alternating currents or smooth residual direct currents, Siemens provides the right type for all requirements and special versions. 3. Reliable safety during installation due to standard reach-around and touch protection. 4. Toolless removal from the standard mounting rail or from the busbar assembly simply by operating a manual slide. 5. The data matrix code on the front of the device provides quick and easy access to information on all aspects of RCCBs. 6. Be protected according to the standards: The RCCBs meet the provisions of DIN VDE. 7. Optimized technology for your safety – only from Siemens. &DPMD_ACC602_001_000_5SV8RCM&
Description
Technical Specifications Technical Specifications Residual current monitoring relay Type of electric connection Screw connection Width 54 mm Depth 68 mm Height 85 mm Number of contacts as change-over contact 2 Number of contacts as normally closed contact 0 Number of contacts as normally open contact 0 Min. adjustable delay-on energization time 0.02 s Max. permitted delay-on energization time 10 s Response value amperage 1 – mA Error registration possible Yes Response value amperage 2 30 – 30000.0 mA With detachable clamps No Indication of difference current Yes
