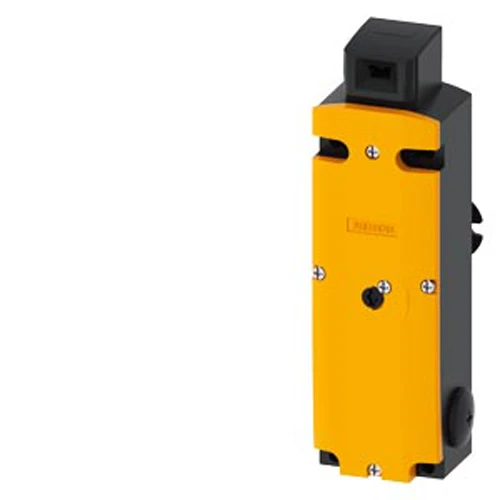

Siemens Safety Position Switch Locking Force 2600 N, 5 Directions Of Approach, 3X
£431.38 Incl. VAT
Safety position switch with tumbler Locking force 2600 N 5 directions of approaches Spring-locked Escape release from the rear and auxiliary release on front Magnet voltage 24 V DC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO Supplied without actuator. Actuator 3SE5000-0AV0. please order separately Mechanical safety switches SIRIUS 3SE5 for position monitoring of moving protection equipment. They ensure that protective doors, covers or protective flaps/grilles are kept closed, for as long as a hazardous state exists. The actuator heads with screwless mounting can be rotated by 4×90 degrees. Five directions of approach are possible for the actuator, one of which is from the front. The contact blocks ensure an extremely high contact stability and can only be switched with separately coded actuators that guarantee greater protection against manipulation. LEDs conveniently indicate the current state of the device. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The devices are available with spring or solenoid locking, in plastic with a locking force of 1300 N or in metal with a locking force of 2300 N. An extensive range of 3D-coded actuators is available to order. Some versions are optionally available with an LED status display. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. The actuator is not included in the scope of delivery of the safety switches and must be ordered separately. Depending on the design, plug-in connectors and connection accessories are available. Safety is a SIRIUS business. · · · Safety position switch locking force 2600 N, 5 directions of approach, 3X
Description
Technical Specifications Technical Specifications Position switch with guard locking Type of interface for safety communication None Explosion safety category for gas None Explosion safety category for dust None Interface type None Construction type housing Special construction Type of switching contact Slow-action switch Coating housing Lacquered Type of guard locking Quiescent current principle Housing material Metal Type of electric connection Cable entry metrical Degree of protection (IP rating) IP65 Number of safety auxiliary contacts 4 Rated operation current Ie at AC-15, 24 V 6 A Width sensor 54 mm Number of contacts as change-over contact 0 Length of sensor 185 mm Height of sensor 43.5 mm Rated operation current Ie at DC-13, 125 V 0.55 A Rated operation current Ie at DC-13, 24 V 3 A Number of contacts as normally closed contact – Rated operation current Ie at AC-15, 230 V – A Number of contacts as normally open contact – Rated operation current Ie at DC-13, 230 V – A Clamping force 2600 N Rated operation current Ie at AC-15, 125 V – A Rated control supply voltage Us magnet drive at AC 50 Hz – V Rated control supply voltage magnet drive at AC 60 Hz – V Rated control supply voltage magnet drive at DC 24 – 24 V Ambient temperature during operating -25 – 60 °C With escape unlocking Yes With auxiliary release No With status indication No Suitable for safety functions Yes
