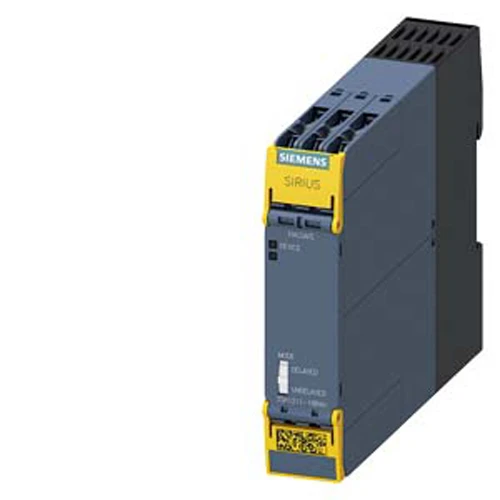

Siemens SIRIUS Safety Relay Output Expansion 4RO With Relay Enabling Circuits
£163.26 Incl. VAT
SIRIUS safety relay Output expansion 4RO with relay enabling circuits 4 NO contacts plus Relay signaling circuit 1 NC contact Us = 24 V DC screw terminal Output expansion SIRIUS 3SK1 for safety relays. The 3SK output expansions are used for supplementing basic units with additional safe outputs with a switching capacity of up to 10 A. They can be connected to each 3SK basic unit by wiring. All devices with a 24 V DC control supply voltage can also be connected to the 3SK1 and 3SK2 Advanced basic units using 3ZY12 device connectors. The devices have four (AC-15 5 A) or three (AC-15 10 A) fail-safe outputs. There is a choice between a control supply voltage of 24 V or a wide voltage range. Available with screw or spring-type terminals (push-in) across the board. The 3SK safety relays are replacing the proven 3TK28 series. Safety is a SIRIUS business.
Description
Technical Specifications Technical Specifications Device for monitoring of safety-related circuits Stop category acc. to IEC 60204 0 Performance level acc. to EN ISO 13849-1 Level e SIL according to IEC 61508 3 Type of electric connection Screw connection Width 22.5 mm Number of outputs, signalling function, delayed, semiconductors 0 Number of outputs, safety related, undelayed, with contact – Number of outputs, signalling function, undelayed, semiconductors – Number of outputs, signalling function, delayed, with contact – Number of outputs, safety related, undelayed, semiconductors – Number of outputs, safety related, delayed, with contact – Number of outputs, safety related, delayed, semiconductors – Number of outputs, signalling function, undelayed, with contact – Depth 121.6 mm Height 100 mm Release-delay – s With feedback circuit No Suitable for monitoring of position switches No Suitable for monitoring of emergency-stop circuits No Suitable for monitoring of valves No Suitable for monitoring of optoelectronic protection equipment No Suitable for monitoring of tactile sensors No Suitable for monitoring of magnetic switches No With detachable clamps No With approval for BG BIA No With muting function No Suitable for monitoring of proximity switches No With approval according to UL Yes With start input No Rail mounting possible No · Technical Data Sheet – Click to Download
