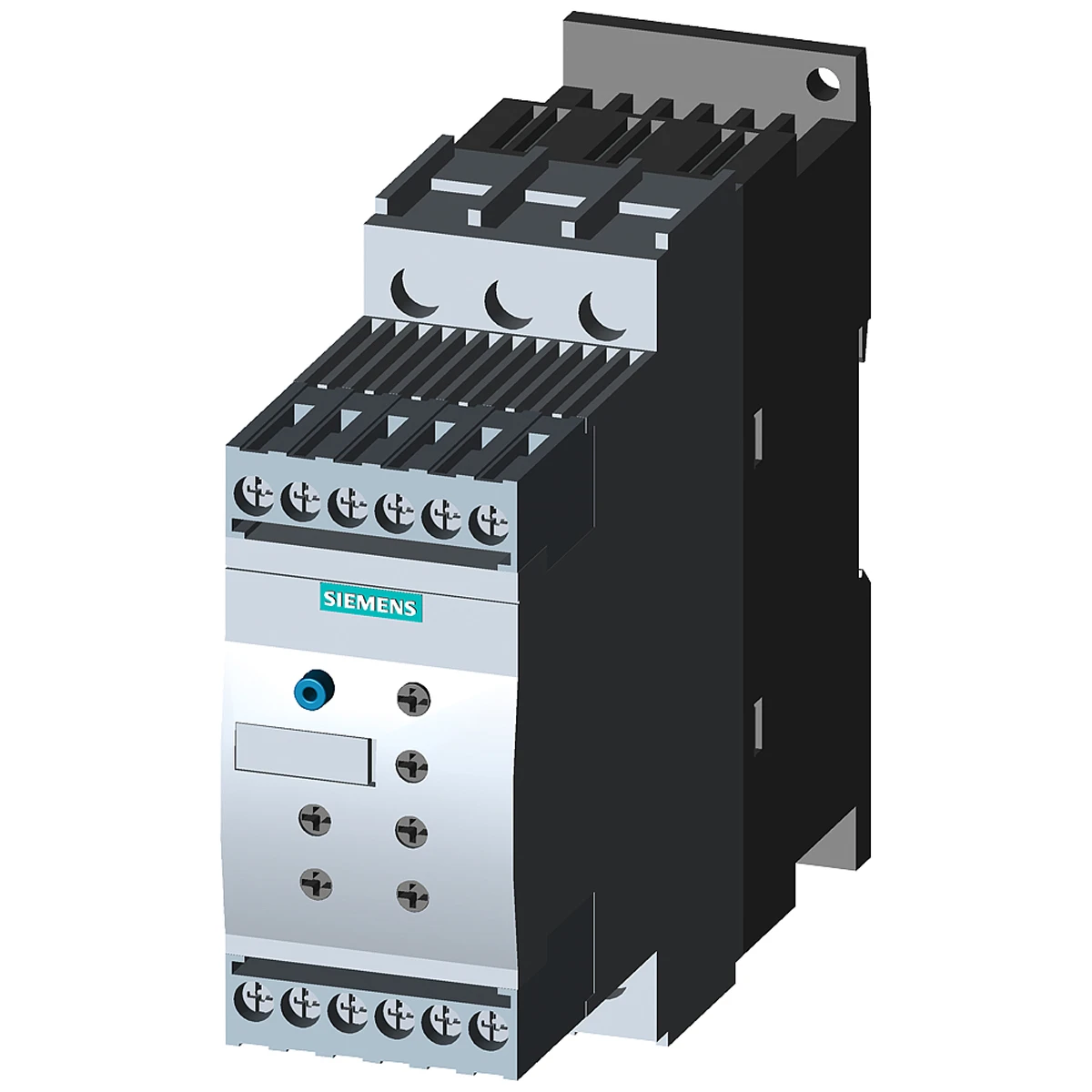

Siemens Starter Soft Size S0 In-Line Circuit 15Kw 32A 24V Screw Term
Siemens Starter Soft Size S0 In-Line Circuit 15Kw 32A 24V Screw Term
Siemens Starter Soft Size S0 In-Line Circuit 15Kw 32A 24V Screw Term - Image 2

Siemens Starter Soft Size S0 In-Line Circuit 15Kw 32A 24V Screw Term

£584.76 Incl. VAT

Siemens soft starter equipped with integrated bypass contact system and featuring thyristors. Starter comes with intrinsic device and motor overload protection as well as an external reset function and an adjustable current limitation. This starter has screw-type electrical connection terminals with auxilary contacts (2NO + 1CO). · · · Operating Current: 32A (at 40°C rated value) · · Screw clamp terminals: 2x (1 – 2.5mm²), 2 x (2.5 – 6mm²), max – 1 x 10mm² · · Number of poles for main current circuit: 3 · · Mounting type: Screw/Snap-on mounting · · Maximum wire length: 300m · · Operating voltage (standard circuit rated): 200 – 480V · · Operating frequency: 50 – 60Hz · · Mounting position: +/-90° rotatable, +/-22.5° tiltable (with additional fan, vertical mounting surface) · · Ambient operating temperature: -25°C to 60°C · · IP20 Degree of protection

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RW4027-1BB04 Categories: , , , Brand: Product Code: 2500389188

Description

Technical Specifications  Technical Specifications Soft starter Voltage type for actuating AC/DC Degree of protection (IP rating) IP20 Rated power three-phase motor, inline, at 400 V 15000 kW Rated surrounding temperature without derating 40 °C Rated operation current Ie at 40 °C Tu 32 A Rated operating voltage Ue 200 – 480 V Rated power three-phase motor, inline, at 230 V 7500 kW Rated control supply voltage at AC 50 Hz 24 – 24 V Rated control supply voltage at AC 60 Hz 24 – 24 V Display No Rated control supply voltage at DC 24 – 24 V Internal bypass Yes Torque control No Integrated motor overload protection Yes
