Siemens Timing Relay Electronic On Delay 1 Change-Over
Siemens Timing Relay Electronic On Delay 1 Change-Over

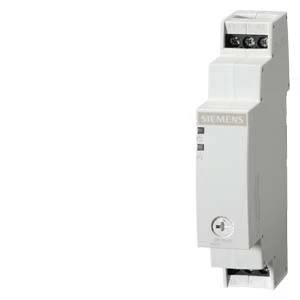

Siemens Timing Relay Electronic On Delay 1 Change-Over - Image 2

Siemens Timing Relay Electronic On Delay 1 Change-Over

£39.19 Incl. VAT

Timing relay, electronic ON delay 1 change-over contact, 1 time range 0.5…10 s 24/230 V AC and 24 V DC with LED, Screw terminal timing relay SIRIUS 7PV15, slow-operating, for various switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup. Can be used in the control cabinet or distribution board. Wide range of applications due to variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The 7PV time relays are available as single or multifunctional time relays. Alternatively, 3RP time relays are available in an industrial design as single or multifunctional time relays with semi-conductor output or as electromechanical relays with or without positively driven operation, with various connection technologies in each case. SIRIUS relays – one range for every application. · · · TIME RELAY, SOLID-STATE,

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 7PV1512-1AP30 Categories: , , , , , Brand: Product Code: 2501257735

Description

Technical Specifications  Technical Specifications Timer relay Voltage type for actuating AC/DC Type of electric connection Screw connection Width 17.5 mm Number of outputs, undelayed, normally closed contact 0 Depth 66.7 mm Number of outputs, undelayed, normally open contact 0 Number of outputs, undelayed, change-over contact 0 Number of outputs, delayed, normally closed contact 0 Number of outputs, delayed, normally open contact 0 Number of outputs, delayed, change-over contact 1 Height 90 mm Time range 0.5 – 10.0 s Rated control supply voltage at AC 50 Hz 200 – 240 V Rated control supply voltage at AC 60 Hz 200 – 240 V Rated control supply voltage at DC 24 – 24 V With semiconductor output No Outputs, reversible delayed/undelayed No Suitable for DIN rail (top hat rail) mounting No Remote operation possible No Function delay on de-energization No Function floating contact on energization No Function floating contact on de-energization No Function star-delta No Function pulse shaping No Function flashing, starting with pause, fixed time No Function flashing, starting with pulse, fixed time No Function delay-on energization Yes Clock function, starting with pause, variable No Clock function, starting with pulse, variable No Suitable as remote control No Pluggable on auxiliary contact block No
