Siemens Timing Relay Electronic With Star-Delta (Wye-D
Siemens Timing Relay Electronic With Star-Delta (Wye-D

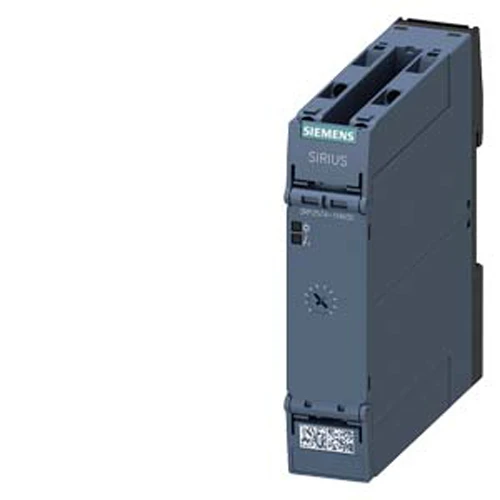

Siemens Timing Relay Electronic With Star-Delta (Wye-D - Image 2

Siemens Timing Relay Electronic With Star-Delta (Wye-D

£89.74 Incl. VAT

Timing relay, electronic with star-delta (wye-delta) function 1 NO delayed 1 NO instantaneous 1 time range, 1…20 s 12-240 V AC/DC at 50/60 Hz AC screw terminal timing relay SIRIUS 3RP25, Star-delta (wye-delta) function, for the targeted startup of motors in star-delta (wye-delta) circuits. Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labeled cover caps, removable terminals and much more. Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies. The 3RP25 timing relays replace the well-proven 3RP15 series. SIRIUS relays – one range for every application. · · · T-REL. Y-D 2 NO CONTACTS 1…20S

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RP2574-1NW30 Categories: , , Brand: Product Code: 2501251749

Description

Technical Specifications  Technical Specifications Timer relay Voltage type for actuating AC/DC Type of electric connection Screw connection Height 100 mm Depth 90 mm Width 22.5 mm Number of outputs, undelayed, change-over contact 0 Number of outputs, delayed, normally closed contact 0 Number of outputs, undelayed, normally closed contact 0 Number of outputs, delayed, change-over contact 0 Number of outputs, undelayed, normally open contact 1 Number of outputs, delayed, normally open contact 1 Time range 1 – 20.0 s Rated control supply voltage at AC 50 Hz 12 – 240 V Rated control supply voltage at AC 60 Hz 12 – 240 V Rated control supply voltage at DC 12 – 240 V Suitable for DIN rail (top hat rail) mounting No With semiconductor output No Outputs, reversible delayed/undelayed No Remote operation possible No Function delay-on energization No Function delay on de-energization No Function floating contact on energization No Function floating contact on de-energization No Function pulse shaping No Function flashing, starting with pause, fixed time No Function flashing, starting with pulse, fixed time No Function star-delta Yes Clock function, starting with pause, variable No Clock function, starting with pulse, variable No Suitable as remote control No Pluggable on auxiliary contact block No
