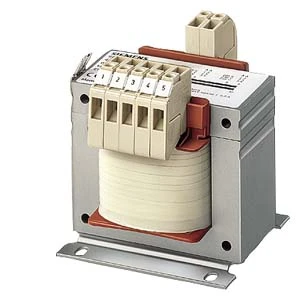

Siemens Transformer 1-Ph., PN (KVA) 0.1/0.31 Upri(V) 400-230+/-15, Usec=24 V Isec(A)4.17
£140.48 Incl. VAT
TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):0,1 /0,31 UPRI(V):400-230+/-15 USEC(V):24 ISEC(A):4,17 F(HZ):50…60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREWS/MOUNTING RAILS EN 61558-2-2, -2-6 >UL/CSA-RECOGNIZEDCONTROL CIRCUIT TRANSFORMERSAFETY ISOLATING TRANSFORMER< The 4AM transformers unite all properties of single-phase safety, isolating, control and line transformers. With these properties, they can effortlessly handle any application. The control transformers are also characterized by their short-time rating.
Description
Technical Specifications Technical Specifications One-phase control transformer Degree of protection (IP rating) IP00 Type of insulation material acc. IEC 85 B Width 86 mm Depth 102 mm Relative short circuit voltage 7.7 % Height 98 mm Rated apparent power 100 VA Primary voltage 1 415 – 415 V Primary voltage 5 230 – 230 V Primary voltage 4 245 – 245 V Primary voltage 3 385 – 385 V Primary voltage 2 400 – 400 V Primary voltage 7 – V Primary voltage 8 – V Primary voltage 9 – V Primary voltage 10 – V Secondary voltage 2 – V Secondary voltage 3 – V Secondary voltage 4 – V Secondary voltage 5 – V Secondary voltage 6 – V Secondary voltage 7 – V Secondary voltage 10 – V Primary voltage 6 215 – 215 V Secondary voltage 1 24 – 24 V Secondary voltage 8 – V Secondary voltage 9 – V Short-circuit-proof No Built as isolating transformer No Built as safety transformer No Built as energy saving transformer No Suitable for mounting on PCB No Modular version No Ring core No
