Siemens Transformer, 1-Ph. PN/PN(KVA)2/9.7, Upri=550-208 V
Siemens Transformer, 1-Ph. PN/PN(KVA)2/9.7, Upri=550-208 V

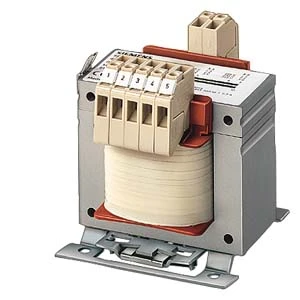

Siemens Transformer, 1-Ph. PN/PN(KVA)2/9.7, Upri=550-208 V - Image 2

Siemens Transformer, 1-Ph. PN/PN(KVA)2/9.7, Upri=550-208 V

£1,145.40 Incl. VAT

TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):2 /9,7 UPRI(V):550-525-500-480-460- 440-415-400-380-230-208 USEC(V):2X115 ISEC(A):2X8,7 F(HZ):50…60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-4 >UL/CSA-RECOGNIZEDCONTROL CIRCUIT TRANSFORMERISOLATION TRANSFORMER< The 4AM transformers unite all properties of single-phase safety, isolating, control and line transformers. With these properties, they can effortlessly handle any application. The control transformers are also characterized by their short-time rating.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 4AM6442-8DD40-0FA0 Categories: , Brand: Product Code: 1052087344

Description

Technical Specifications  Technical Specifications One-phase control transformer Type of insulation material acc. IEC 85 B Degree of protection (IP rating) IP00 Depth 158 mm Height 164 mm Width 176 mm Relative short circuit voltage 2.19 % Primary voltage 1 550 – 550 V Rated apparent power 2000 VA Primary voltage 4 480 – 480 V Primary voltage 5 460 – 460 V Primary voltage 2 525 – 525 V Primary voltage 3 500 – 500 V Secondary voltage 2 115 – 115 V Primary voltage 10 230 – 230 V Secondary voltage 1 230 – 230 V Primary voltage 9 380 – 380 V Primary voltage 8 400 – 400 V Primary voltage 7 415 – 415 V Primary voltage 6 440 – 440 V Built as safety transformer No Modular version No Short-circuit-proof No Built as energy saving transformer No Built as isolating transformer No Ring core No Suitable for mounting on PCB No
