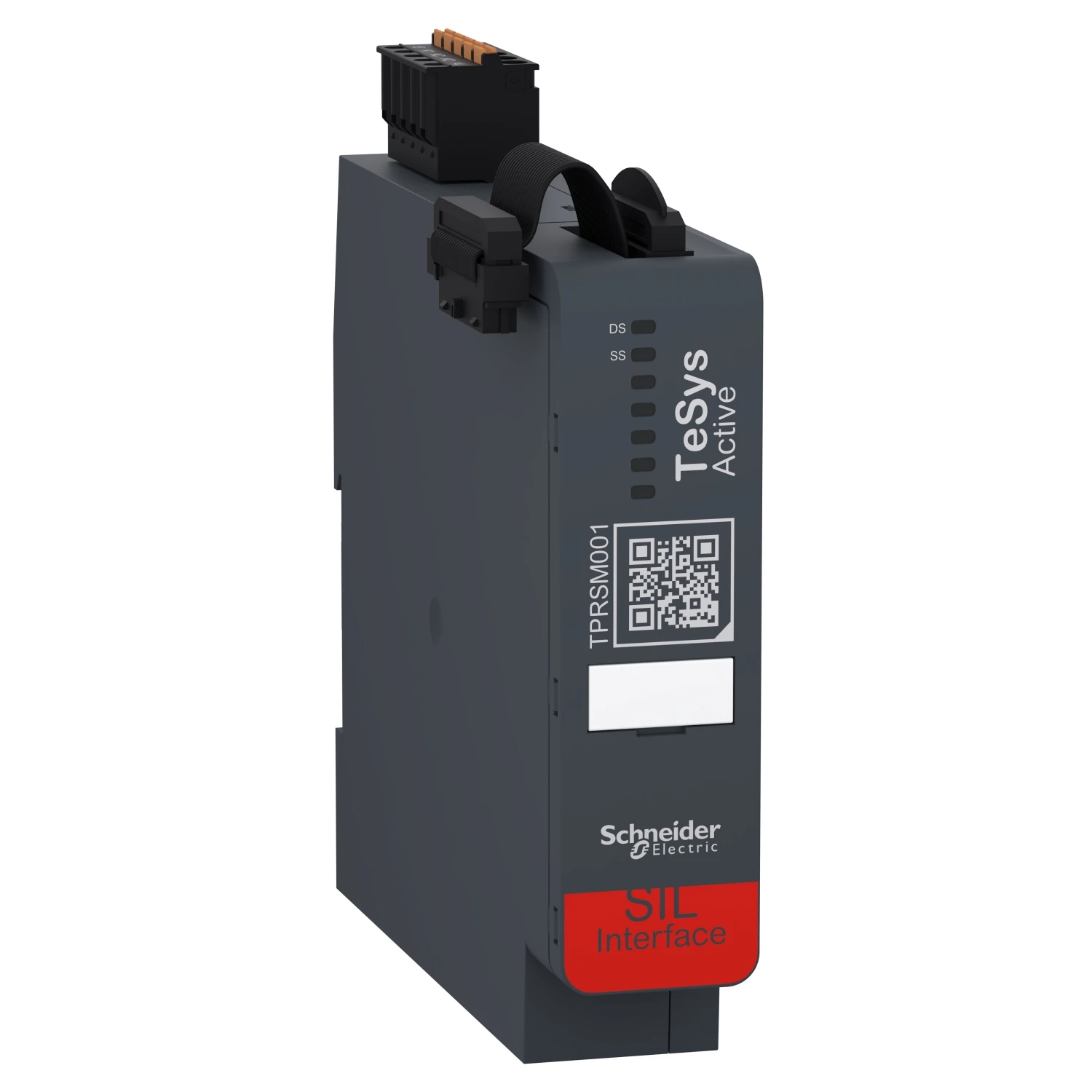

SIL interface module, TeSys island

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – function-/technology module Depth 114.00 mm Height 118.00 mm Number of HW-interfaces Wireless 0.00 Number of HW-interfaces PROFINET 0.00 Width 25.00 mm Number of HW-interfaces other 2.00 Number of HW-interfaces parallel 0.00 Number of HW-interfaces RS-485 0.00 Number of HW-interfaces serial TTY 0.00 Number of HW-interfaces RS-232 0.00 Number of HW-interfaces RS-422 0.00 Number of functions 1.00 Number of HW-interfaces USB 0.00 Number of HW-interfaces industrial Ethernet 0.00 Supply voltage AC 50 Hz – – – V Supply voltage AC 60 Hz – – – V Supply voltage DC 20.40 – 28.80 V Frequency measurement No Suitable for safety functions Yes Supporting protocol for KNX No Supporting protocol for CAN No Supporting protocol for ASI No Supporting protocol for PROFIBUS No Supporting protocol for INTERBUS No With optical interface No Supporting protocol for LON No Supporting protocol for TCP/IP No System accessory Yes Single-axis positioning possible No Suitable for multi-axis positioning No Single-axis controller possible No Suitable for multi-axis control No Supporting protocol for SERCOS No Radio standard Bluetooth No Supporting protocol for INTERBUS-Safety No Supporting protocol for AS-Interface Safety at Work No Rail mounting possible Yes Radio standard WLAN 802.11 No IO link master No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Supporting protocol for MODBUS No Supporting protocol for other bus systems Yes Suitable for detection absolute value No Flux controller possible No Suitable for flux measurement No Suitable for cam controller No Suitable for flying saw No Supporting protocol for SUCONET No Suitable for path controller No Suitable for weighting No Suitable for welding control No Suitable for pressure control No Suitable for NC No Suitable for SSI No Suitable for CNC No Function electronic positioning available No Suitable for incremental data detection No Suitable for counting No Wall mounting/direct mounting No Rack-assembly possible No Supporting protocol for EtherNet/IP No Appendant operation agent (Ex ia) No Fieldbus connection over separate bus coupler possible Yes Function block automatic reset No Function block contactless working protection installation No Radio standard GPRS No Front built-in possible No Appendant operation agent (Ex ib) No Function block 2-hand switching No Function block affirm pushbutton No Function block emergency stop No Function block restart blockage No Supporting protocol for SafetyBUS p No Supporting protocol for PROFIsafe No Supporting protocol for PROFINET CBA No Supporting protocol for PROFINET IO No Supporting protocol for Foundation Fieldbus No Supporting protocol for DeviceNet Safety No Radio standard UMTS No Radio standard GSM No Suitable for temperature control No Contactor control function block Yes Function block operating mode selection No Function block access control No · Technical Data Sheet – Click to Download
