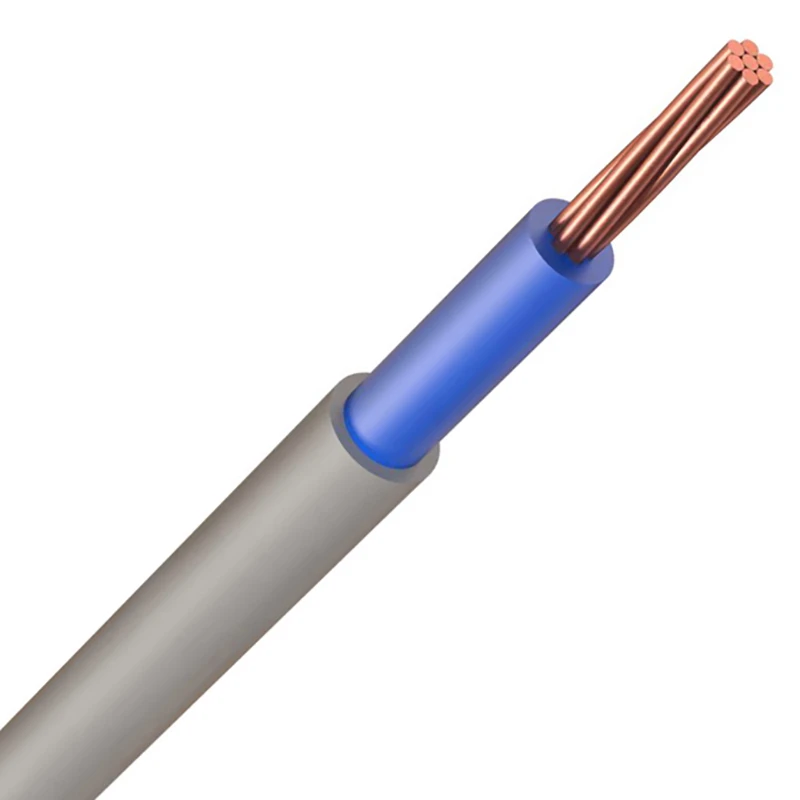

Commodity Cables 6181YH 16.0mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails
£263.34 Incl. VAT
This product is packaged as 50m Reel. Hence when ordering, a mutiple of 50 needs to be entered. 6181YH16.0GRY/BLU50 is a Wiring Cable made of copper conductor with double insulated tails and PVC insulator. This wiring cable is suitable for use in new build installations and existing or replacement installations. Operating voltage of 300/500V · · · BS6004 PVC single core cable Double Insulated · · Used in light industrial and domestic wiring · · Solid conductors 1.0mm – 2.5mm · · Stranded conductors 4.0mm -35.0mm · · Product Packaging: Reel · · Tails · · Tails · · Standard: BS6004 · · Material: PVC · · Standard: BS6004
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Armouring/reinforcement None Sheath colour Grey Conductor category Class 2 = stranded Conductor material Copper Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Core identification Colour Conductor surface Bare Nominal voltage U 500 V Conductor Diameter 16 mm Nominal voltage U0 300 V Nominal cross sectional area of conductor 16 mm² Number of cores 1 Max. conductor temperature 70 °C Outer diameter approx. 9 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Drain wire No Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Twisted cores No Screen No · Technical Data Sheet – Click to Download
