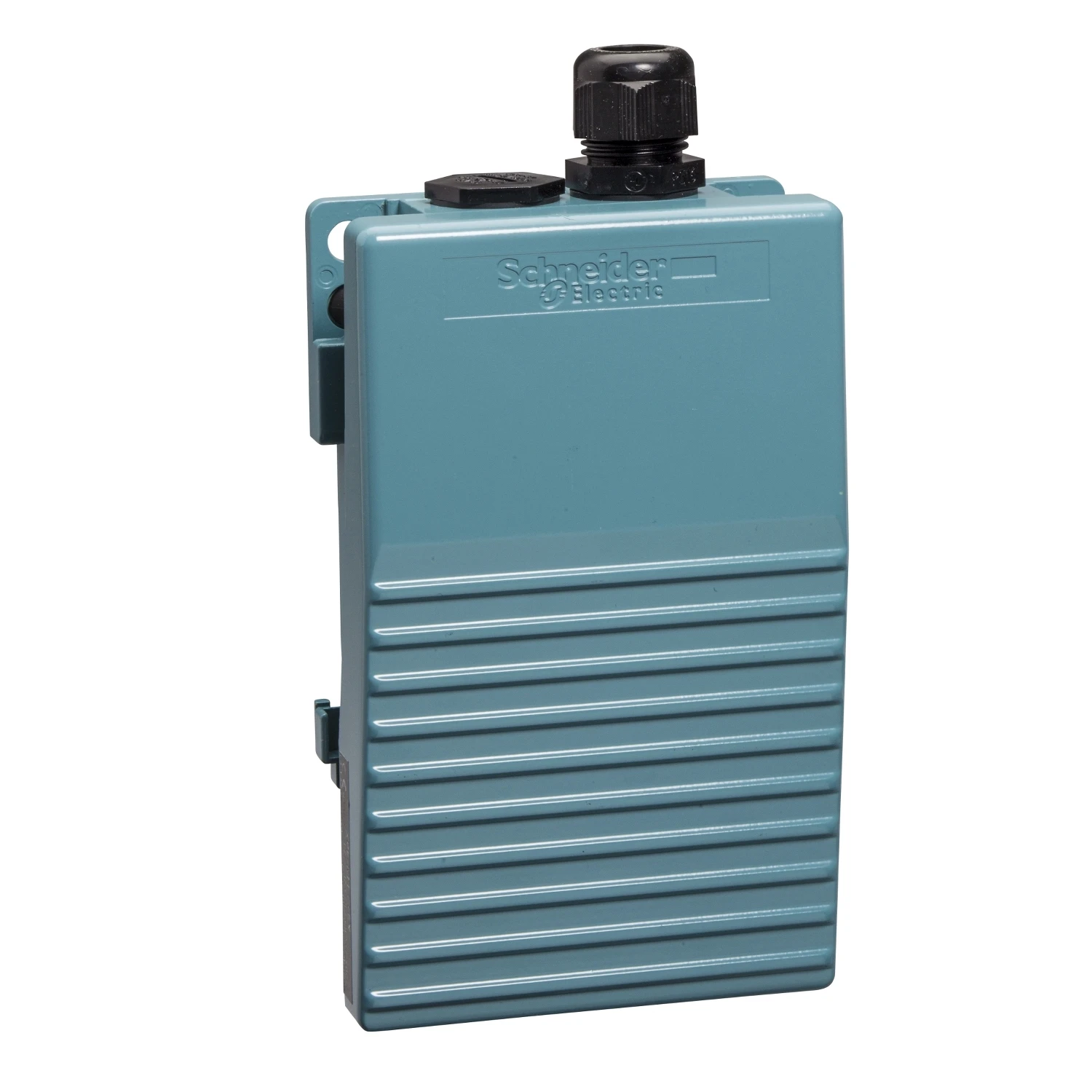

Single foot switch 2 NO + 2 NC without cover
£193.84 Incl. VAT
Single foot switch made up of metal without trigger mechanism. This switch has 4 contacts (2 NC + 2 NO). · · · This footswitch is ideal for bending machines, dosing machines, assembly stations, packaging machines, cutting presses, stamping presses and machine tools (numerical control, lathes, milling machines, grinders, machining centres). · · It is also ideal for guillotines, cutters, folders, saws, forging machines, rolling machines and cold metal forming machines. · · 2 entries tapped for PG16 cable gland · · Mechanical durability: 15000000 cycles · · With Positive Opening · · Ambient temperature: -25 to 70°C · · IP66 Degree of protection · · 3A Rated operational current · · SP_st80_update_2024-10-23 · · Shock resistance: 20-150gn
Out of stock
Description
Technical Specifications Technical Specifications Foot switch Height – mm Width 104 mm Rated operation current Ie at AC-15, 230 V 3 A Number of contacts as normally closed contact 2 Depth 172 mm Number of contacts as normally open contact 2 Number of contacts as change-over contact 0 Number of switch levels 1 Suitable for safety functions Yes Switching function latching No With protection hood No With interlocking No With protective insulation No · Technical Data Sheet – Click to Download
