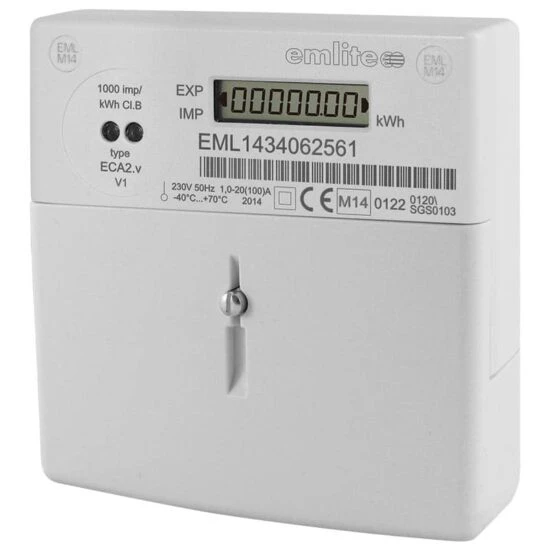

Single Phase Digital kWh Meter (100A Direct Connected) with extended terminal cover

The EmLite ECA2 single phase meter provides a compact solution for many metering applications. Fully approved in accordance with the Measuring Instruments Directive (MID), this highly accurate meter may be used for utility billing or micro-generation metering.The ECA2 single phase meter is one of the worlds most compact metering devices allowing the unit to be used in metering installations where space is at a premium. · · · The meter provides measurement of active (kWh) energy in both import and export directions with registers shown on the large easy to read LCD display · · The display features 8×3.5mm characters and can be configured to auto cycle any of the available registers or remain static with only a single register viewable. · · The meter features an optical port conforming to IEC 629056-21 allowing meter readings to be collected electronically using a standard probe and software tool · · The port also allows configuration of the meter.
